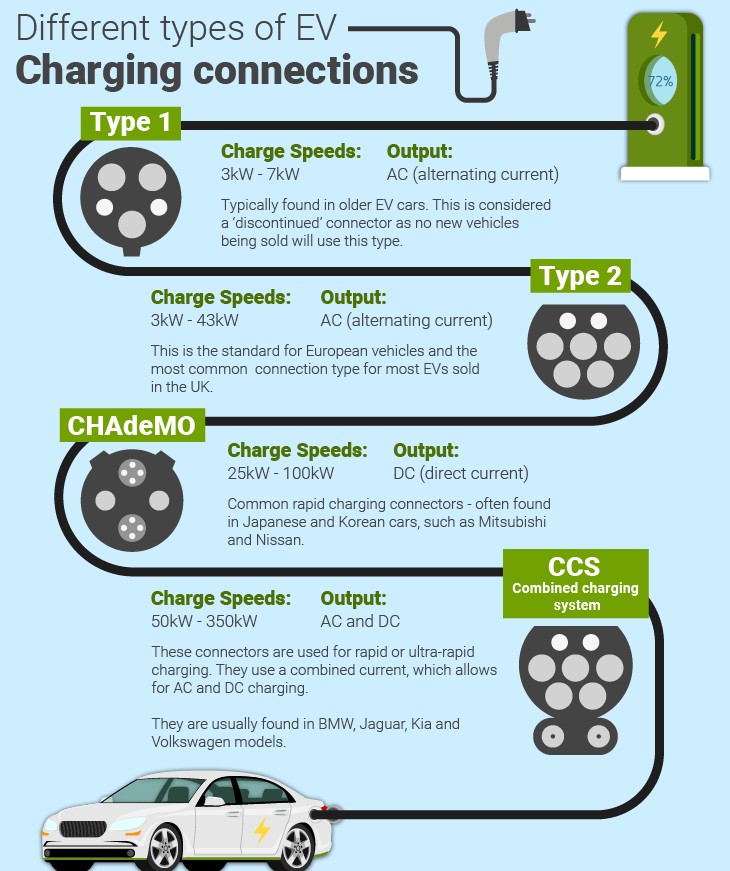

As electric vehicles (EVs) become increasingly popular, understanding the various types of EV charging connections is essential for both current and prospective EV owners. These connections, often referred to as connectors or plugs, vary depending on the region, vehicle model, and charging speed. Here’s an overview of the most common types of EV charging connections:

1. Type 1 (SAE J1772)

• Commonly Used In: North America and Japan.

• Description: The Type 1 connector is a single-phase plug that supports Level 1 and Level 2 charging. It has five pins and is widely used for residential and public charging stations.

• Charging Speed: Typically up to 7.4 kW (Level 2).

2. Type 2 (IEC 62196 or Mennekes)

• Commonly Used In: Europe, Australia, and some Asian countries.

• Description: The Type 2 connector is a three-phase plug that supports Level 2 and Level 3 charging. It has seven pins and is the standard for most public charging stations in Europe.

• Charging Speed: Up to 22 kW (Level 2) or 43 kW (Level 3).

3. CCS (Combined Charging System)

• Commonly Used In: North America and Europe.

• Description: CCS combines the Type 1 or Type 2 connector with two additional DC pins for fast charging. It supports both AC and DC charging, making it versatile for various charging needs.

• Charging Speed: Up to 350 kW (DC fast charging).

4. CHAdeMO

• Commonly Used In: Japan and globally for older EV models.

• Description: CHAdeMO is a DC fast-charging connector with a unique design. It is widely used in Japan and is compatible with many older EV models.

• Charging Speed: Up to 400 kW (DC fast charging).

5. Tesla Connector

• Commonly Used In: North America, Europe, and other regions with Tesla vehicles.

• Description: Tesla uses its proprietary connector for its Supercharger network. However, adapters are available to allow Tesla vehicles to use other types of connectors.

• Charging Speed: Up to 250 kW (Tesla Supercharger).

6. GB/T (Guobiao Standard)

• Commonly Used In: China.

• Description: GB/T is the Chinese national standard for EV charging. It includes both AC and DC connectors and is widely used across China.

• Charging Speed: Up to 237.5 kW (DC fast charging).

Choosing the Right Connection

The type of charging connection you need depends on your vehicle, location, and charging requirements. Most modern EVs come with adapters to support multiple connector types, ensuring compatibility with various charging stations. As the EV industry evolves, standardization efforts are underway to simplify charging infrastructure globally.

Understanding these connections can help you make informed decisions about charging your EV, whether at home, work, or on the road.
