As electric vehicle (EV) adoption continues to rise, so does the demand for fast, efficient charging solutions. DC fast chargers, which offer a significantly faster charging experience than traditional AC chargers, are becoming increasingly common. Among DC fast chargers, there are two main types: Split-Type and Integrated. Both have distinct advantages and disadvantages depending on the application. Let’s dive into the differences between these two types of chargers.

---

1. Design and Structure

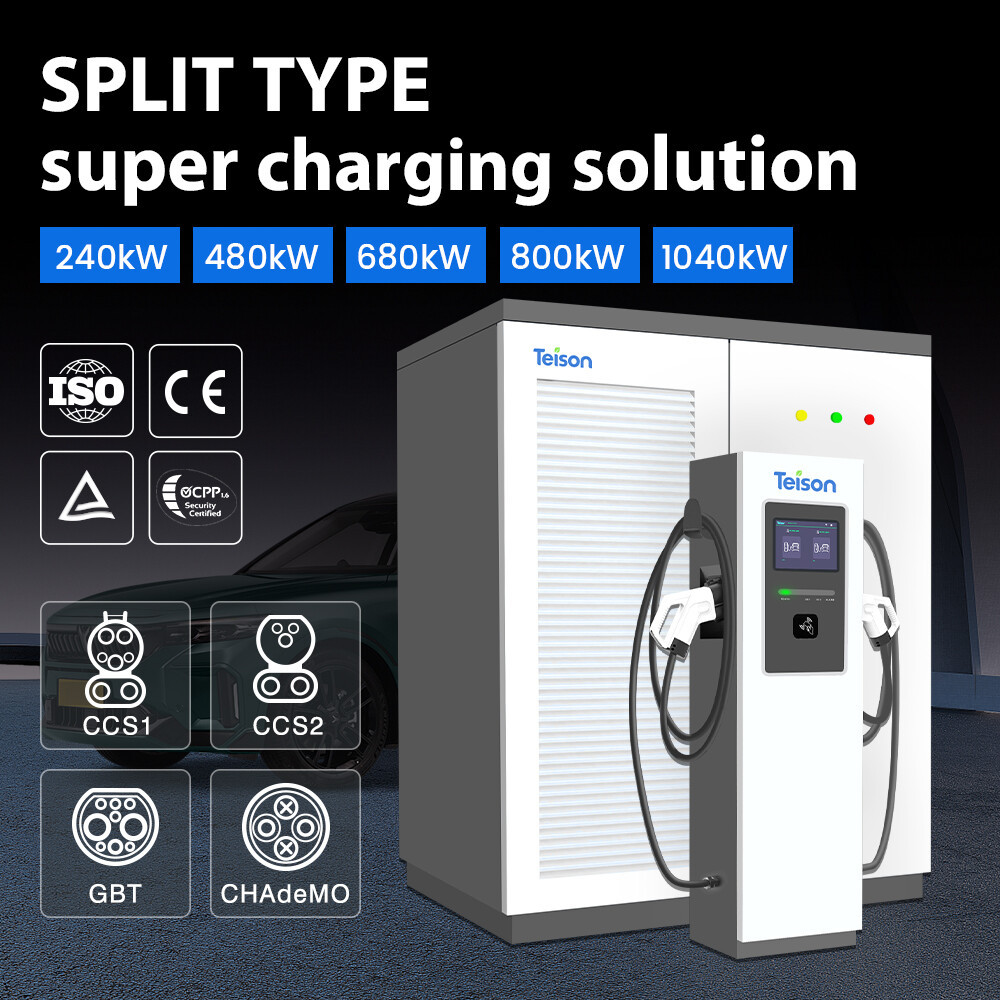

Split-Type DC Fast Charger:In a Split-Type DC fast charger, the charger is divided into two primary units: the power conversion unit and the charging dispenser. The power conversion unit, which houses the main electrical components, can be installed indoors or away from the charging station. The charging dispenser, where users connect their vehicles, is typically placed in the parking area.

This separation has some unique benefits, including the ability to minimize the footprint of the charging station in high-density parking areas. It also allows flexibility in placement for different environmental or space-constrained settings.

Integrated DC Fast Charger:In contrast, the Integrated DC fast charger combines the power conversion unit and charging dispenser into a single unit. All components are enclosed within one cabinet, which is usually installed directly in the parking area.

Integrated chargers are typically easier to install since they only require one installation site, reducing complexity. However, this also means they occupy more space at the charging station and are subject to the weather and environmental conditions of their location.

---

2. Installation and Maintenance

Split-Type DC Fast Charger:The installation of a Split-Type charger can be more complex due to the need for separate wiring between the power conversion unit and the charging dispenser. However, it also offers easier maintenance access. Since the power components are housed in a central location, maintenance staff can perform repairs without needing to access each charging dispenser individually.

Furthermore, if a dispenser experiences issues, it’s often easier to replace just the dispenser without impacting the entire power conversion system. This modular approach can reduce downtime and lower maintenance costs over time.

Integrated DC Fast Charger:The Integrated charger is typically more straightforward to install, as all components are housed within a single unit. This consolidated structure simplifies wiring and can reduce initial installation costs. However, in the event of maintenance needs, the entire charger must be serviced, which can increase downtime if issues arise.

Since all components are exposed to the elements in outdoor installations, it is important to ensure these chargers are weather-resistant, as external factors can accelerate wear and tear.

---

3. Scalability and Flexibility

Split-Type DC Fast Charger:For larger EV charging stations or commercial applications, Split-Type chargers provide greater scalability. As more dispensers can be added with relative ease, this design supports high-volume charging locations by connecting multiple dispensers to a single power conversion unit. This flexibility makes it easier for station operators to expand capacity without substantial upgrades to existing infrastructure.

Integrated DC Fast Charger:While Integrated chargers are less scalable in high-volume settings, they are well-suited for standalone installations. For example, small businesses, hotels, or rural areas might prefer Integrated chargers, as they provide a simple solution in places with low demand for multiple charging points. However, expanding an Integrated charger site to accommodate more vehicles can be challenging, as each additional charging point requires an entirely new charger.

---

4. Cost Considerations

Split-Type DC Fast Charger:Split-Type chargers generally come with a higher initial cost, given the requirement for separate wiring and installation of the power conversion unit. However, they can lead to cost savings over time in high-use settings due to easier maintenance and lower expansion costs. The modular design can also reduce replacement expenses if only the dispensers require upgrading or servicing.

Integrated DC Fast Charger:Integrated chargers are often more cost-effective upfront, as they have a simpler, all-in-one structure. Installation is straightforward and less labor-intensive, which can lower the initial investment. However, for high-usage stations, the lack of modularity might lead to increased costs over time if the entire unit needs replacement due to component failure.

---

5. Applications and Use Cases

Split-Type DC Fast Charger:This charger type is often ideal for commercial applications, such as high-traffic EV charging stations, fleet operations, or large urban parking facilities. It suits situations where space is limited or where a high-density installation is needed, as the dispensers can be placed in compact locations while the power unit remains separate.

Integrated DC Fast Charger:An Integrated charger is more suitable for low- to medium-traffic locations, such as private businesses, shopping centers, and suburban areas with less frequent use. These chargers work well when the priority is a standalone, straightforward charging solution.

---

Conclusion

Both Split-Type and Integrated DC Fast EV chargers have unique benefits and drawbacks. Split-Type chargers offer modularity, scalability, and easy maintenance, making them ideal for high-density applications and high-traffic charging stations. On the other hand, Integrated chargers are cost-effective, easy to install, and perfect for smaller or standalone locations with lower charging demand.

Selecting between these two charger types depends largely on the intended application, expected usage, and budget. With careful consideration, EV station operators can choose the charging solution that best meets their needs and provides efficient, reliable charging for their customers.
