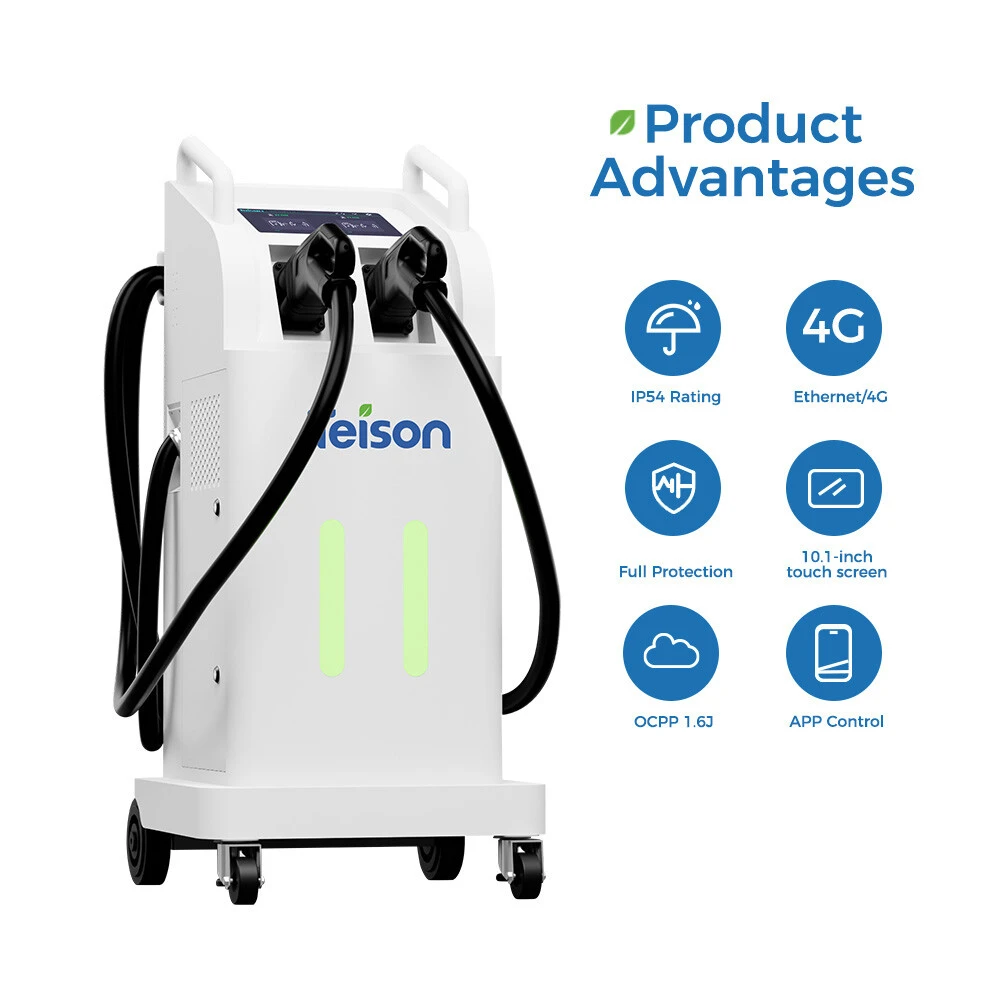

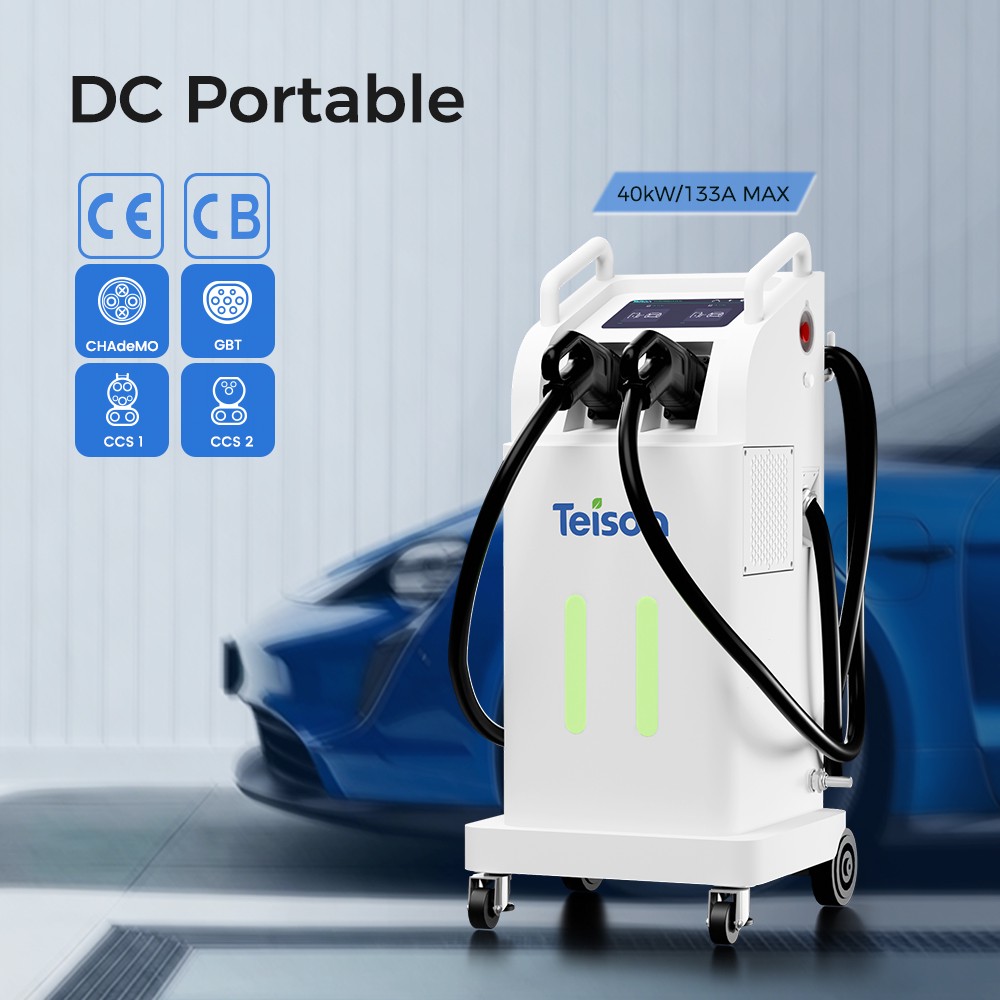

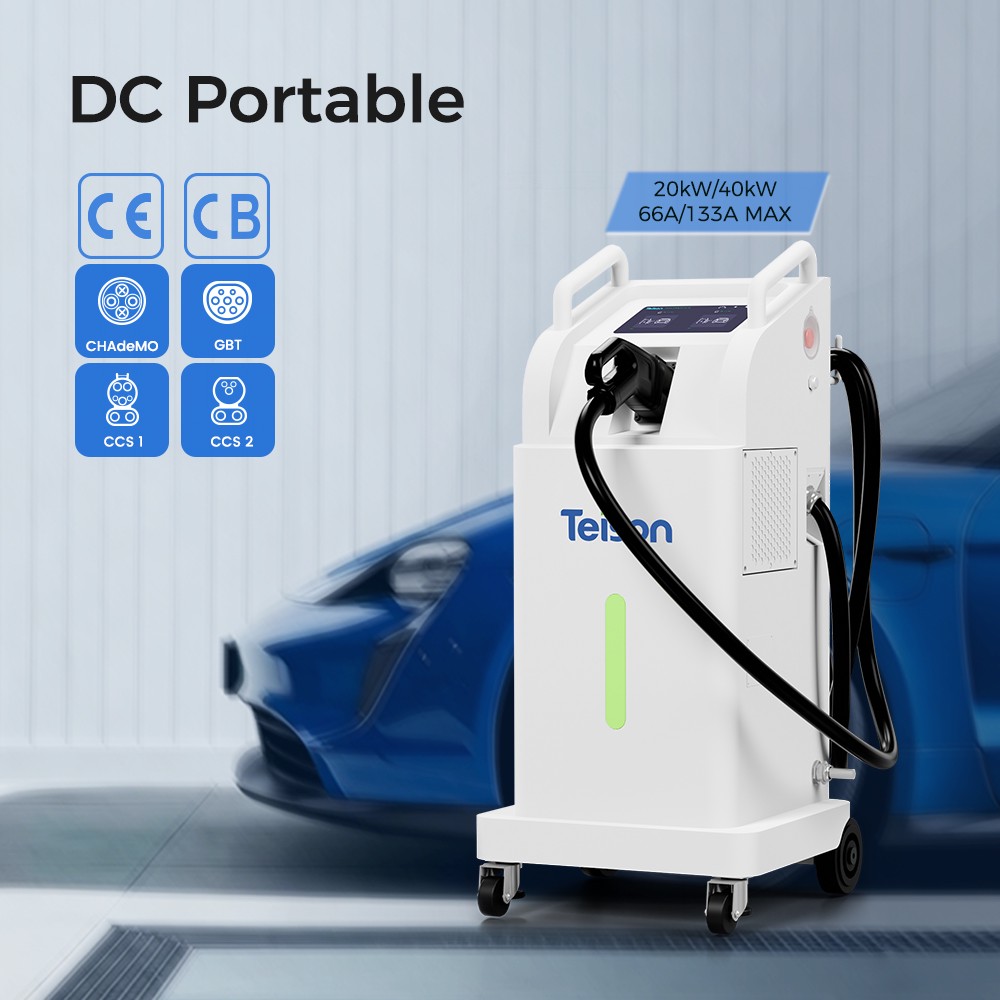

20kW/40kW/60kW movable DC Fast Charger

20kW--Single gun; 40kW--Single gun/Double gun

Two input methods--Wiring/Aviation plug

Stand-alone charging system

Big bottom wheel--Portable push

OCPP 1.6J

Plug and charge

CCS1/2, CHAdeMO and NACS connector types

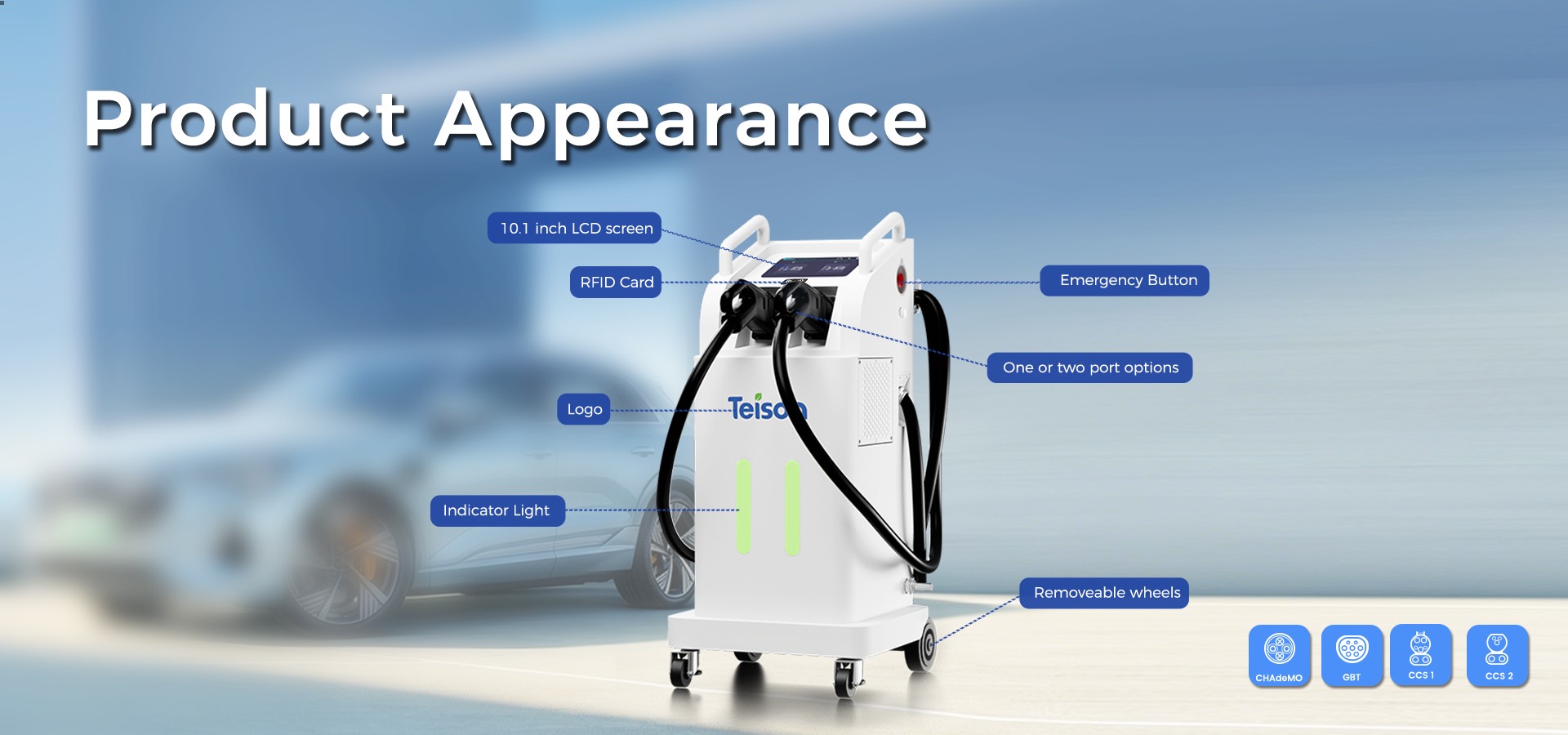

Removable wheels for fixed installation

Perfect protection function



Request A Quote

FEATURES/ADVANTAGES

  • 滚动详情banner1.jpg

FEATURES

Built-in safety measures
User friendly interface
Flexible multi-protocol design
CHAdeMO and CCS protocol compatible
Durable enclosure
Wide temperature range: -25ºC to +50ºC
Data management and metering options

APPLICATIONS

Service station operators
Public corridor charging along the highways
Busy urban areas
Commercial fleet operators
EV Infrastructure operators and EVSE providers

Parameter

Specification

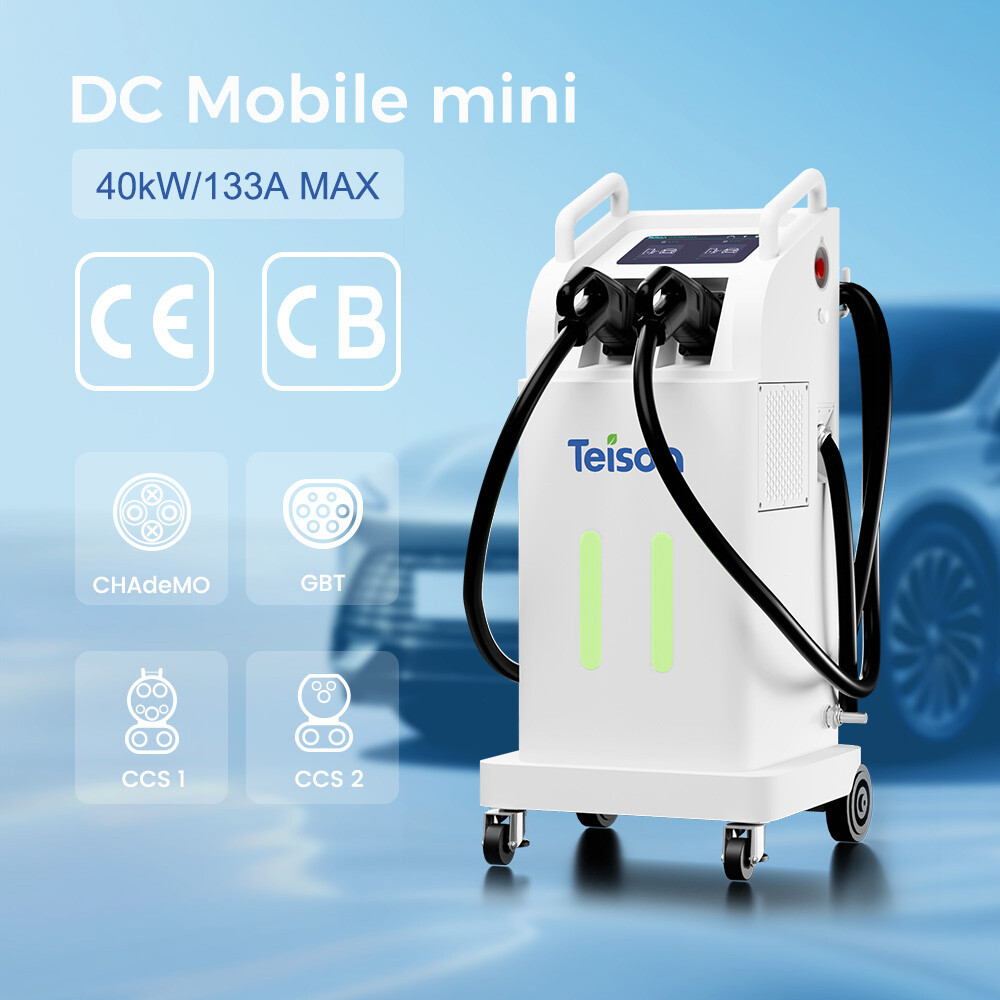

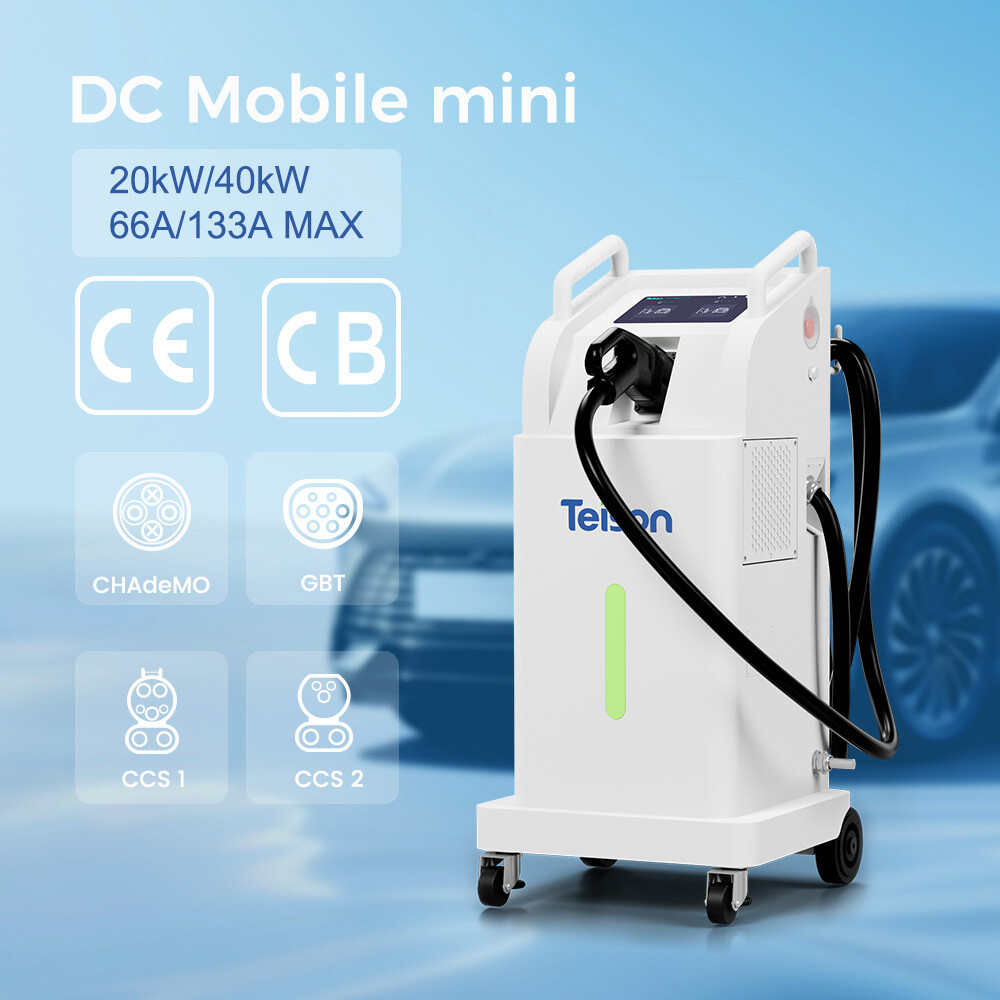

model DC Mobile Mini
Electrical Properties
Input voltage AC 400V±10%
Input current 31A 61A
Output power 20kW 40kW
Output voltage 200-1000V
Output current 66A 133A
Working frequency 50/60Hz
Efficiency ≥94%（More than half of a load）
Power factor ≥0.99
Voltage stabilization accuracy ≤±0.5%
Steady current accuracy ≤±1%
Harmonic current ≤4%
User Interface&Control
Display 10.1" touch screen
Screen material LCD
Screen language English (Customization supported)
Button Power on/Emergency stop
Startup mode RFID、OCPP、QR code、APP、Password
Communication
Network WiFi、Ethernet
Platform OCPP 1.6J
Connect CAN、RS485、RS232
Environment
Working temperature -30℃-50℃
Humidity ≤95%（No condensation）
Altitude ≤2000m（6000feet）
Mechanical
Protection grade IP55
Explosion-proof grade IK10
cooling Air cooling
Installation method Portable
Protection
Protection

Over voltage, under voltage, over current, short circuit, over-temperature, insulation fault, ground fault
Standard
Standard

IEC 61851-1：2019、IEC 61851-23：2014、IEC 61851-24：2014、IEC 61851-21-2：2021
Optional
Network 4G
Payment method POS machine



Sperification
Model DC Mobile ESS(TS-EDMB60)
Electrical Properties
Input AC Input Rating Voltage 323V~477VAC
AC Input Connection 3P+N+PE
AC Input Rating Current 3*45A
Frequency 50/60Hz
Power Factor ≥0.98
AC Efficiency ≥95%
DC Input Voltage 250V~850V
DC Efficiency ≥96%
Output DC Output Voltage Range 200V~1000V
DC Max Output Current 60A
DC Max Output Power 60kW
DC Voltage Accuracy ±0.5%
DC Current Accuracy ±1%
AC Output Rating Voltage 380V/400V/415V(220V/230V/240V)
AC Input Connection 3P+N+PE
AC Max Output Power 30kW
Frequency 50/60Hz
Energy-Storage System Battery Capacity 64.5kWh
Usable Energy(SAT) 61.3kWh(95%DOD)
Battery Nominal Voltage 614.4V
Battery Material LiFePO4
Max Recharge Power 30kW
Max Discharge Power 30kW
Battery Cycle Life(25°C） ≥6000 (80% DOD)
Product Specification
Dimension 0.95*2.05*1.3m(W*D*H)
Material Industrial Grade Alloy
Color White weather-resistant coating
User Interface & Control
Display 10.1" touch screen
Screen Material LCD
Meter DC meter(MID PTB optional)
Push Buttons Operation buttons / Emergency buttons / Fire button
User Authentication User Authentication RFID,OCPP,QR code,Password,Application
Support language English (Other languages available upon request)
Communication
Communication Protocol OCPP 1.6J
External Ethernet,WIFI
Internal CAN,RS485,RS232
Environmental

Operating Temperature

‘-25℃-50℃（over 45℃ derating）
Humidity <95% relative humidity, non-condensing
EMC Emission Type B
Altitude ≤2000m(6000 feet)
Mechanical
Ingress protection IP55
Enclosure Protection IK10
Fire System Composite Detector + Aerosol Extinguishing agent
Cooling System Air Cooling/Air Conditioning
Installation Method Floor mounted
Safety
Input Protection Under voltage, Over voltage, Over current, Over temperature,
Leakage,
Output Protection Short circuit, Over temperature, Residual current, Over current, Leakage,
Emergency Protection Surge protection, Ground fault, High precision output insulation monitoring
Regulation
Certificate CE CB MSDS UN38.3
Standard IEC61851-1, IEC61851-23, IEC61851-21-2, IEC61851-24, IEC61000-6-2, IEC61000-6-4, IEC 62619, IEC61000-6-1/3,
Optional Config
Network Gateway 4G
Payment Method POS Machine
Cable Management Optional
Advertising screen Optional
Charging Port Optional(Default CCS1 CCS2)
Solar Port Reserved
