DC Floor-standing

DC fast charging station

Teison's EDC series are Direct Current Fast Chargers, often called Level 3 EV chargers. DC fast chargers are currently the fastest charging option available for electric vehicles, they use commercial grade AC power which is converted within the charger into DC power to then distribute directly to the vehicles battery, and as the power is already converted to DC makes it possible to deliver more power, faster. DC fast charging stations are the ideal choice for locations where EVs must gain the maximum range in the shortest possible time.

Request A Quote

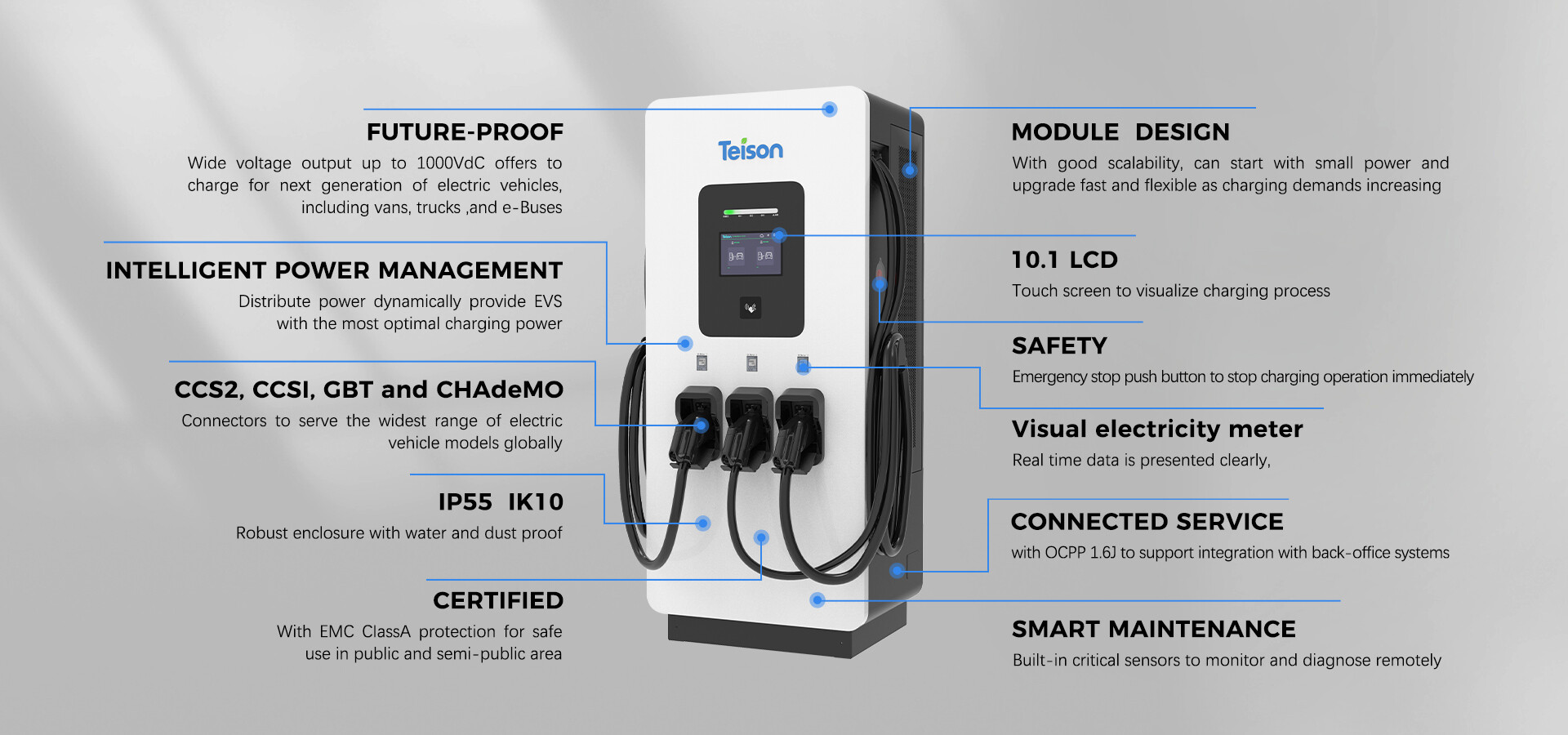

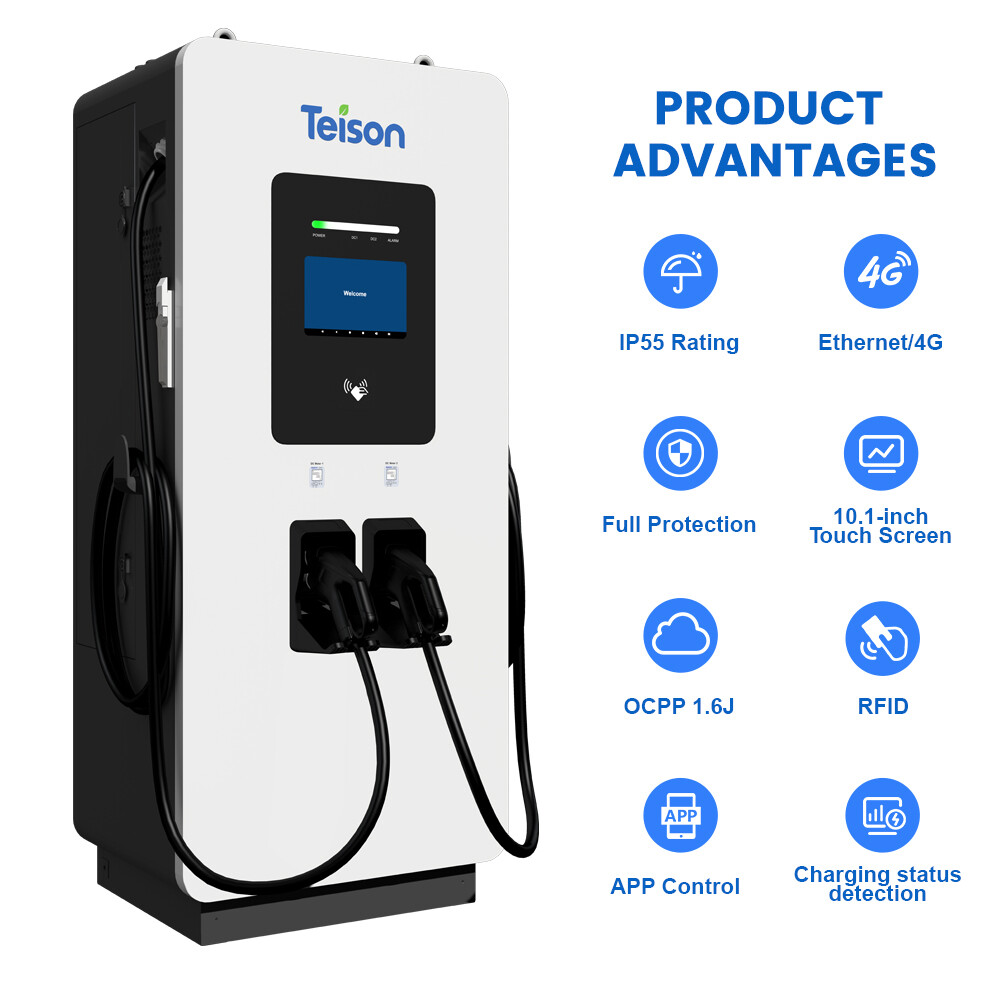

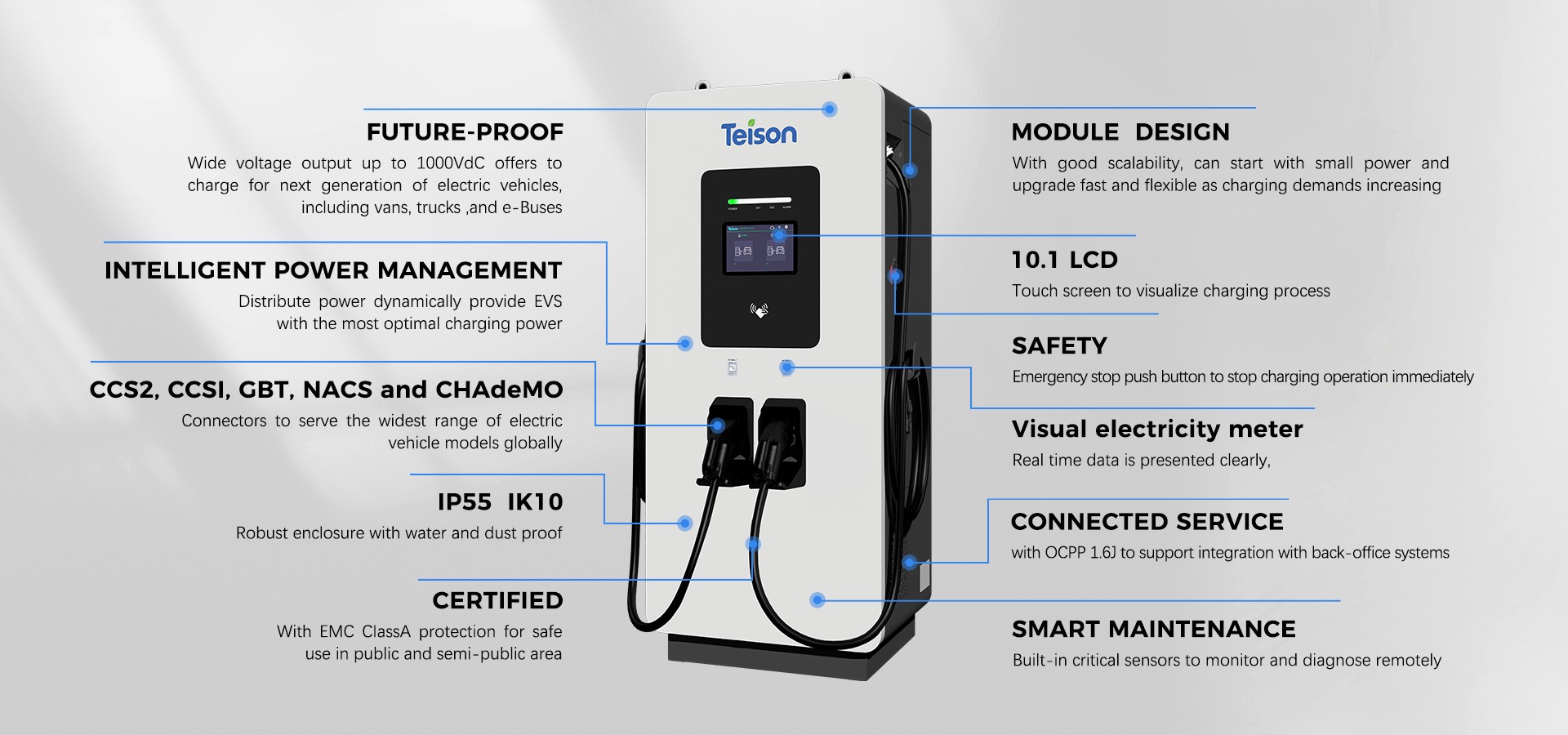

FEATURES/ADVANTAGES

Designed for the best commercial DC

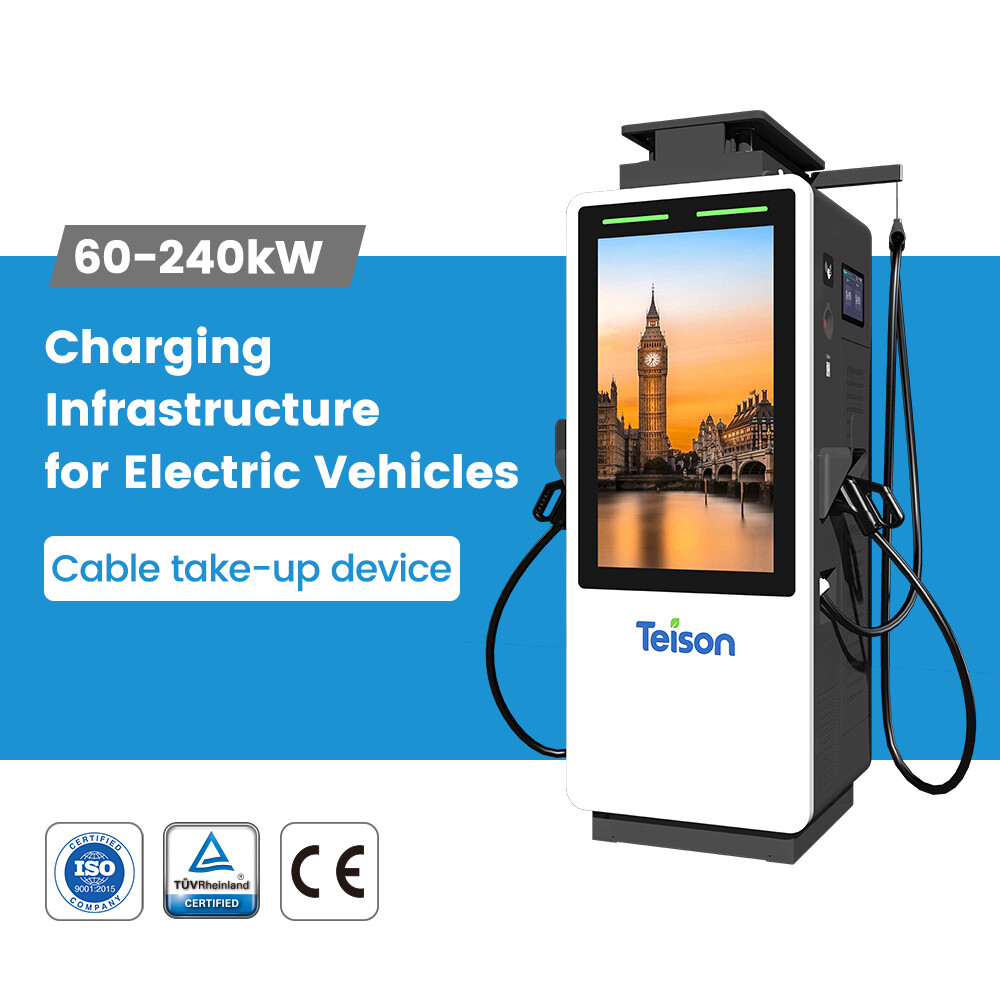

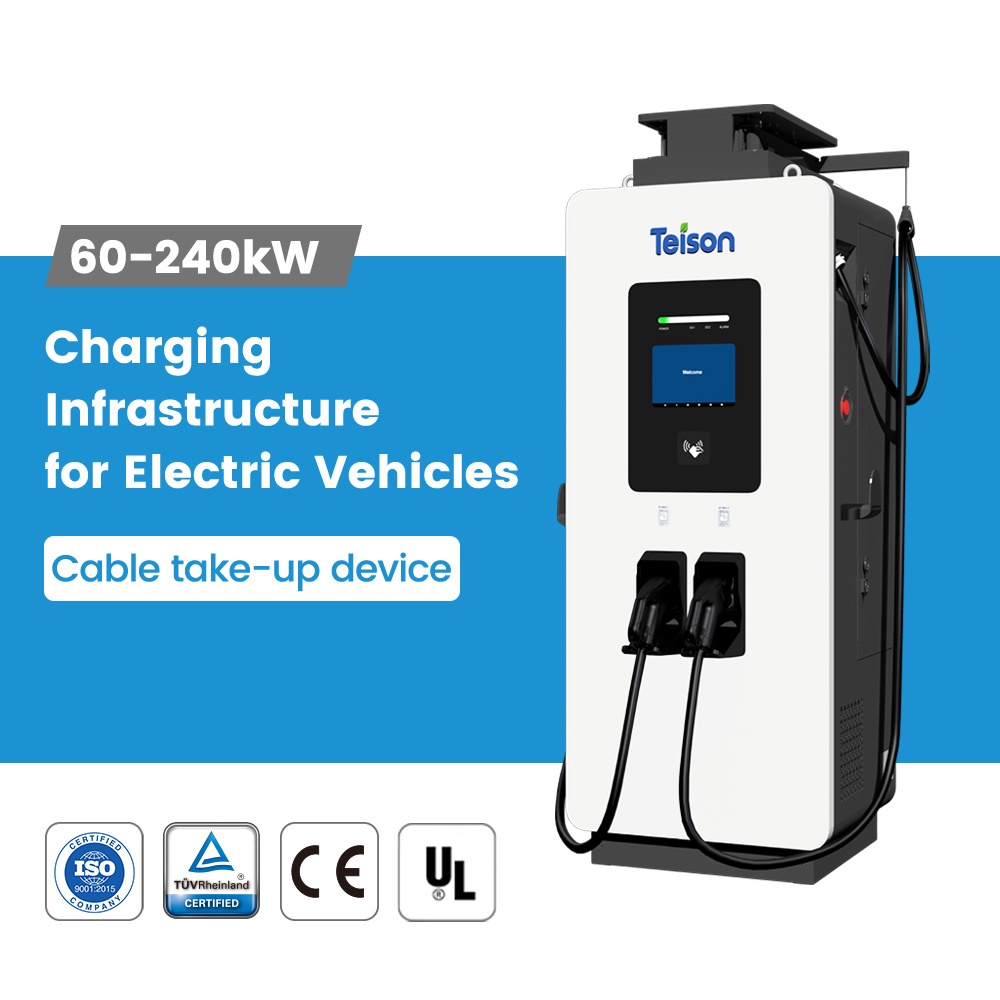

· DC fast chargers (Level 3) with power output from 60kW to 240kW
· True simultaneously charging with the capability to charge two/three

vehicles at the same time
· Future-proof design with 1000 V max output
· Liquid-cooled ultra-fast 240kW EV charging stations available

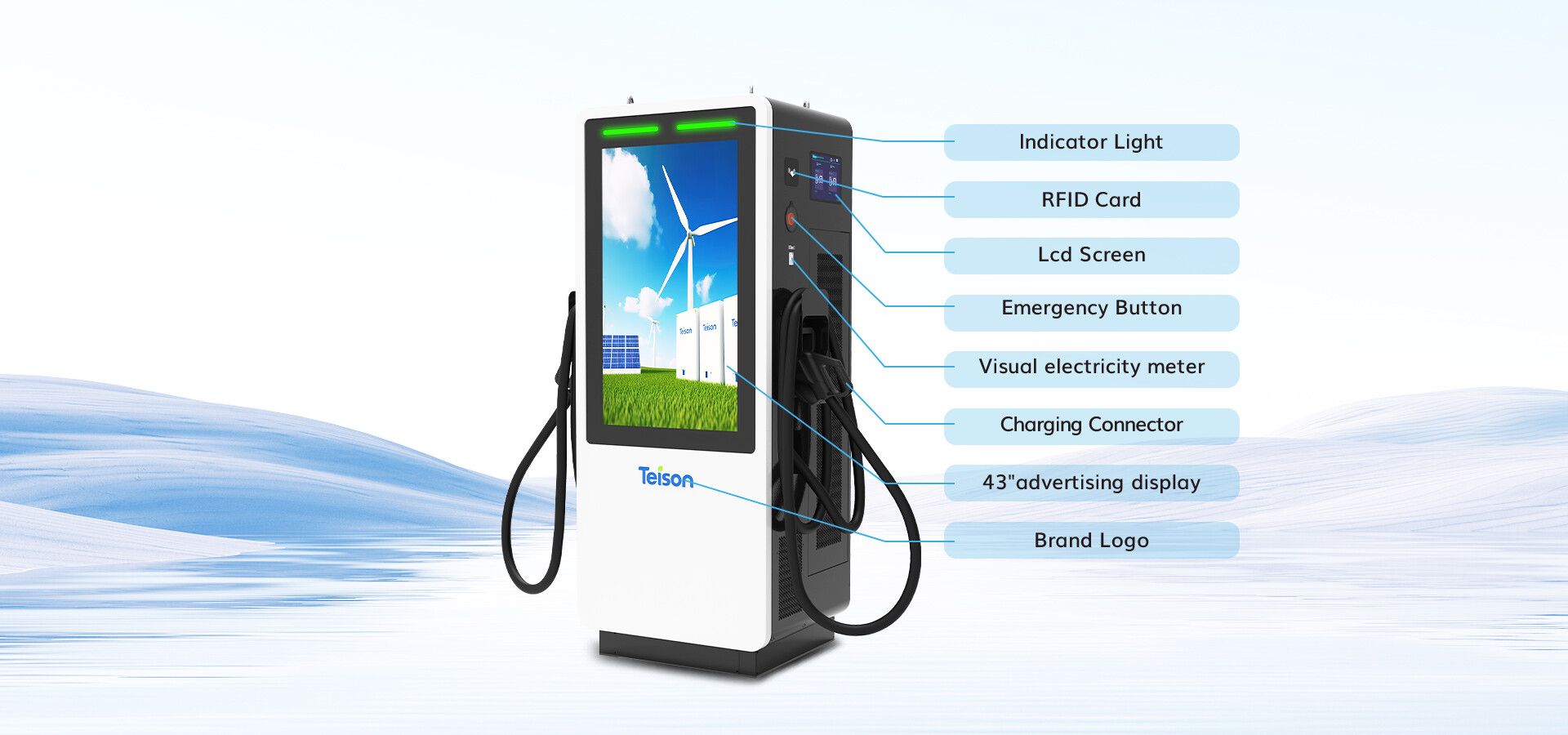

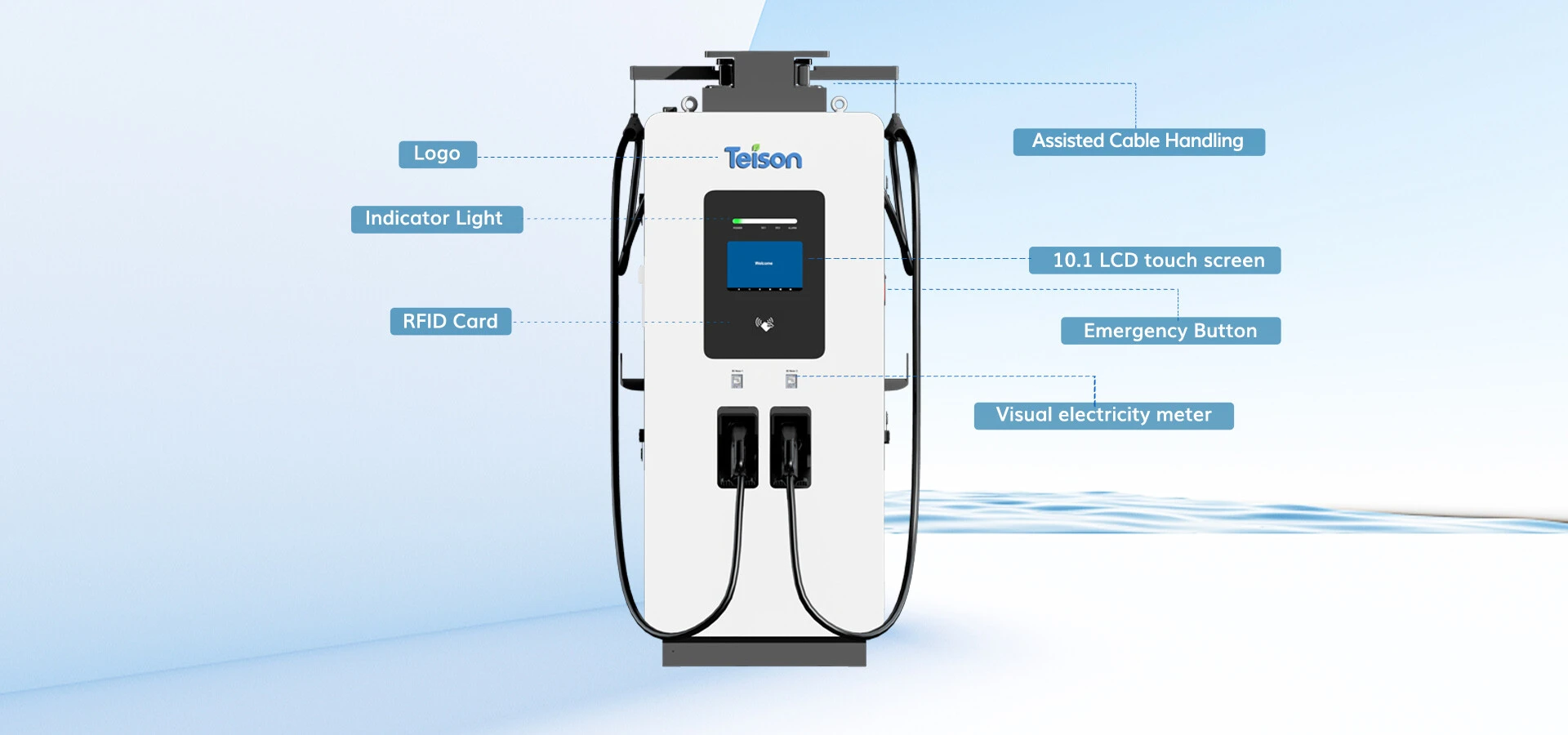

· Driver friendly with a 10.1"LCD touchscreen display and simple to

user interface
· Start modes include plug-n-play, RFID, OCPP, QR code and optional

POS
· Ethernet, 3G, 4G and Wi-Fi connections available

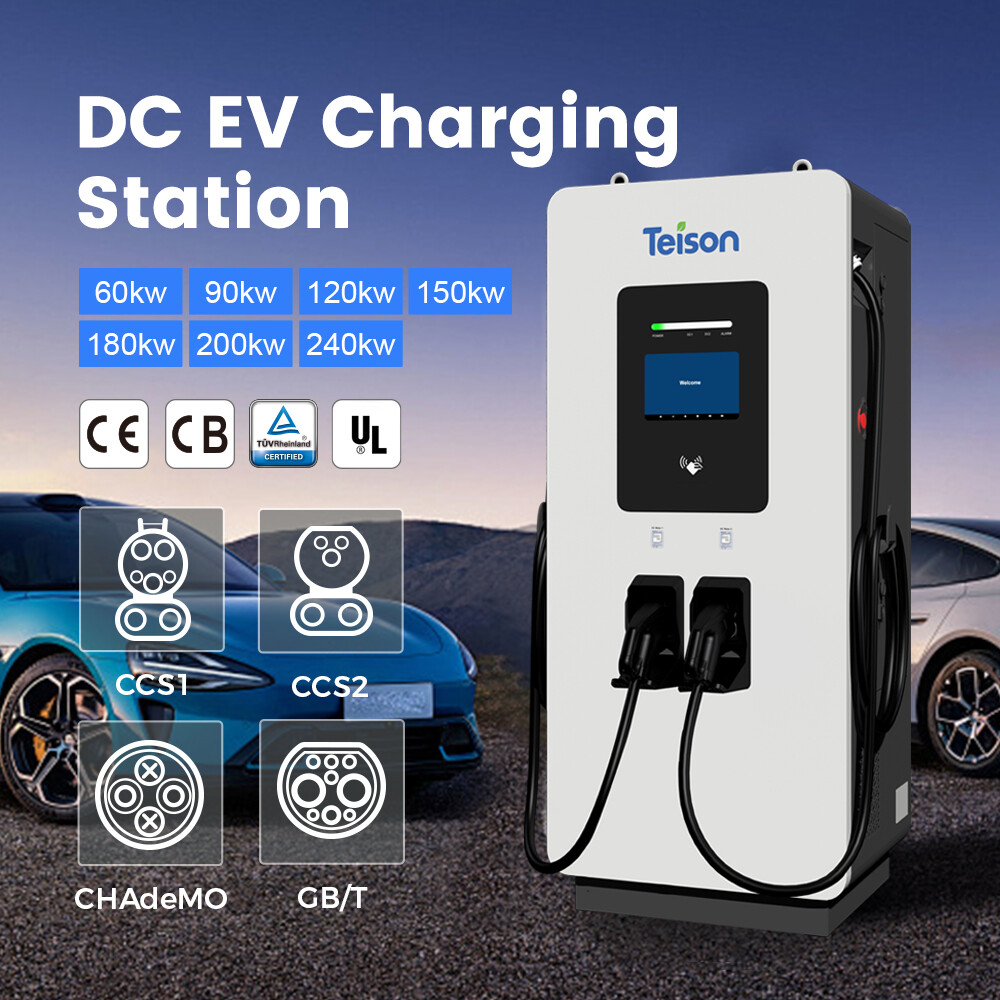

· CHAdeMO, GB/t, and CCS (type 1 or 2) connectors and charging cables
· Designed for easy installation and maintenance
· Available with different power and voltage configurations for global

markets

Highest safety

· Open Charge Point Protocol(OCPP)1.6J and ISO 15118 compliant
· IP55 rated enclosure ideal for a wide range of locations and conditions
· All components come with CE certificate
· SECC controller pass TUV test

Parameter

Specification

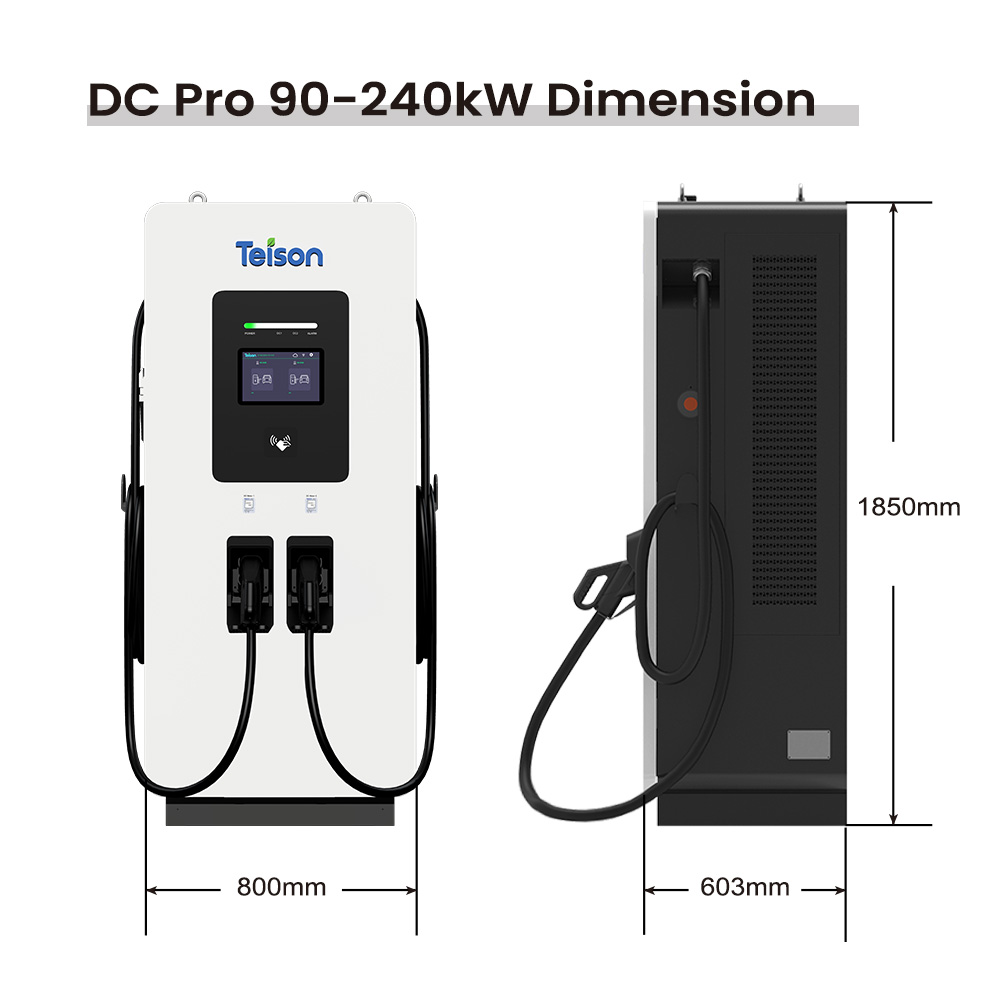

Model		Teison DC Pro

Electrical Properties
AC Input	Input Rating	AC400V(±15%) 3ph
	AC Input Connection	3P+N+PE
	Rate Input Current	3φ100A	3φ150A	3φ200A	3φ250A	3φ300A	3φ400A
	Frequency	50/60Hz
	Power Factor	≥0.99
	Efficiency	≥95%
DC Output	Output Voltage Range	200V-1000V
	Max Output Current	200A（system）	300A(system)	400A（system）	500A(system)	600A(system)	800A(system)
	Max Output Power	DC 60kW	DC 90kW	DC 120kW	DC 150kW	DC 180kW	DC 240kW
	Voltage Accuracy	≤±0.5%
	Current Accuracy	≤±1%
User Interface & Control
Display		10.1"touch screen
Screen Material		LCD
Push Buttons		Operation buttors /Emergency buttons
User Authentication		RFID,OCPP,QR code,Password Application
Support language		English (Other languages available upon request)
Communication
External		Ethernet,WIFI,3G/4G
Intemal		CAN,RS485,RS232
Environmental
Operating Temperature		-30℃-+50℃
Humidity		<95% relative humidity,non-condensing
Altitude		≤2000m(6000 feet)
Mechanical
Ingress protection		IP55
Enclosure Protection		IK10

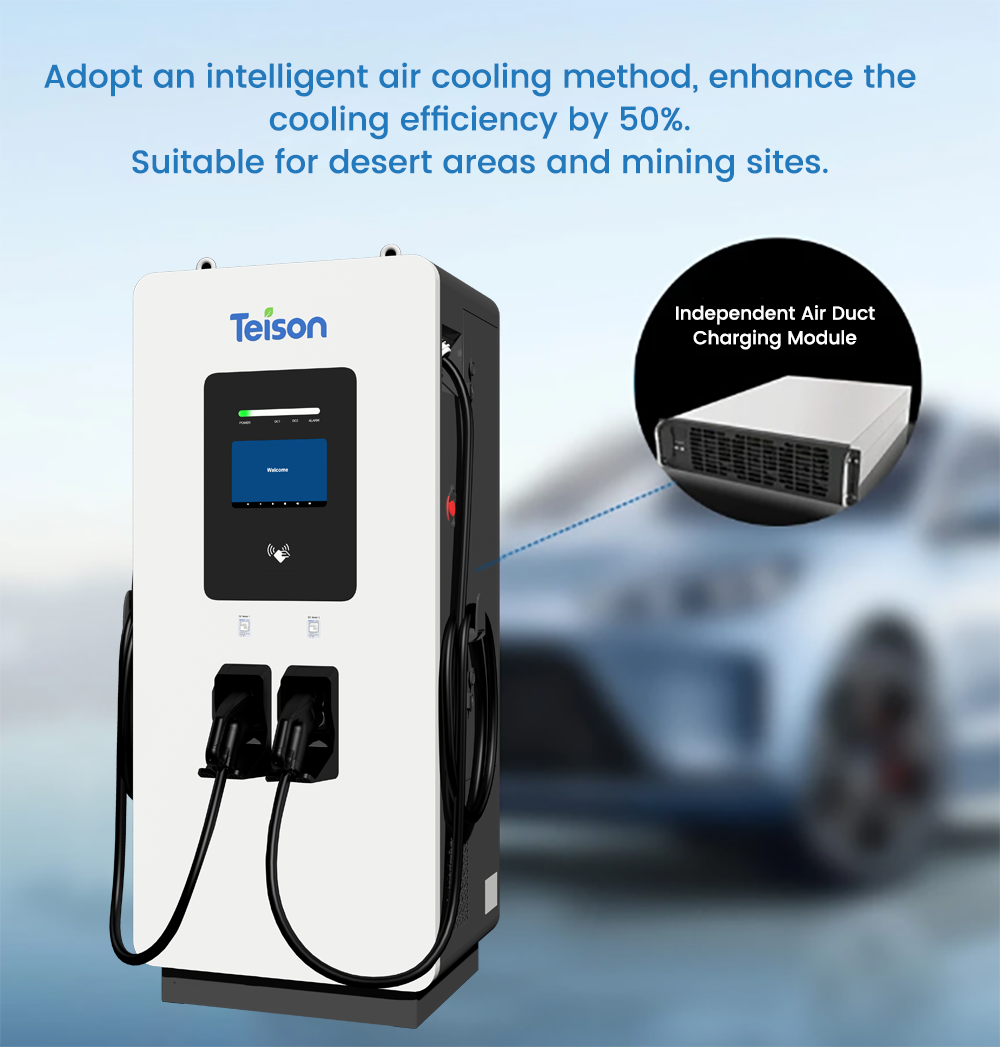

Cooling		Air forced
Installation Method		floor- mount
Protection
Protection		Over current, Under voltage,Over voltage,Residual current,Surge protection,Short circuit,Over temperature,Ground fault
Regulation
Certificate		CE
Standard		EN IEC 61851-1:2019;EN 61851-23:2014;EN 61851-24:2014;EN IEC 61851-21-2:2021

Sperification

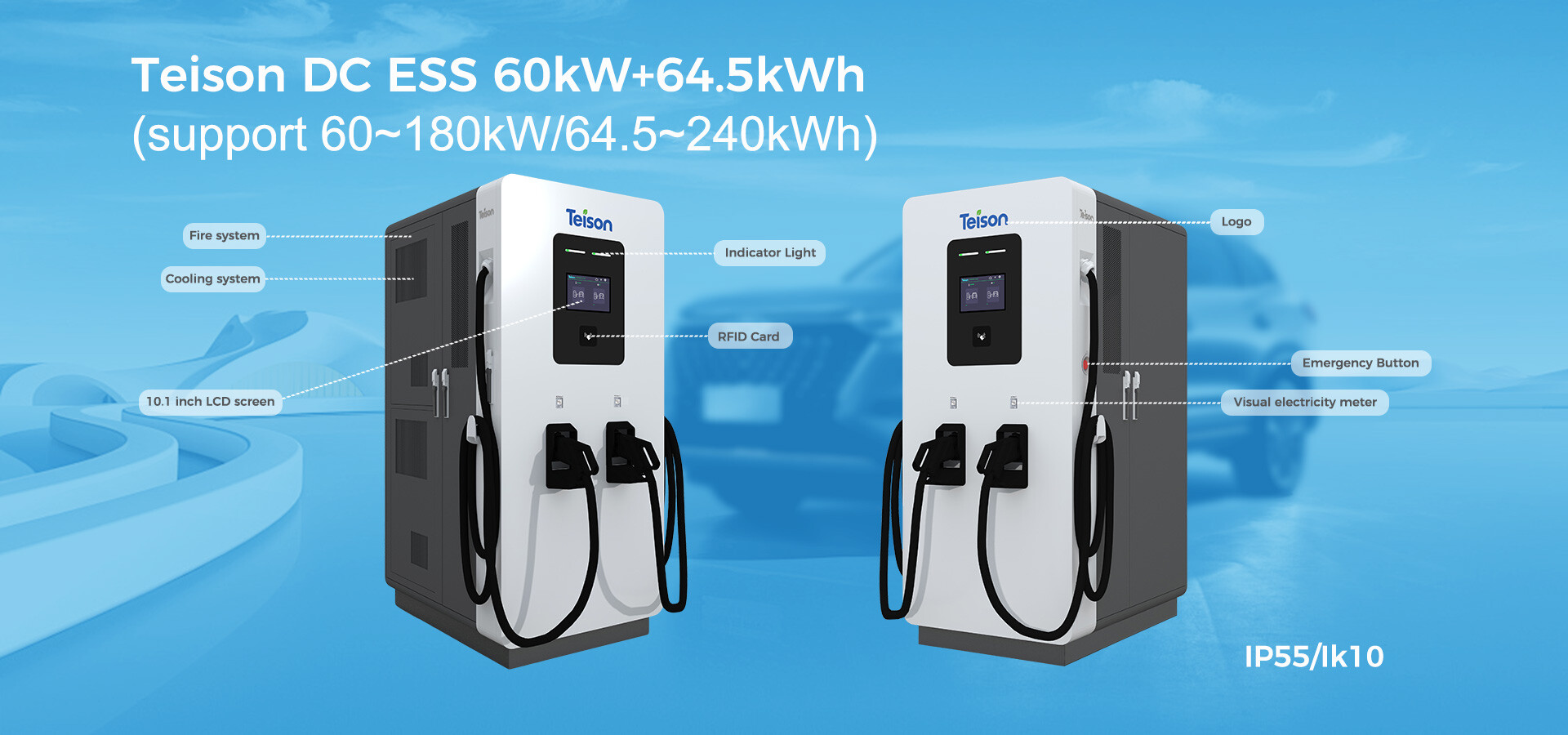

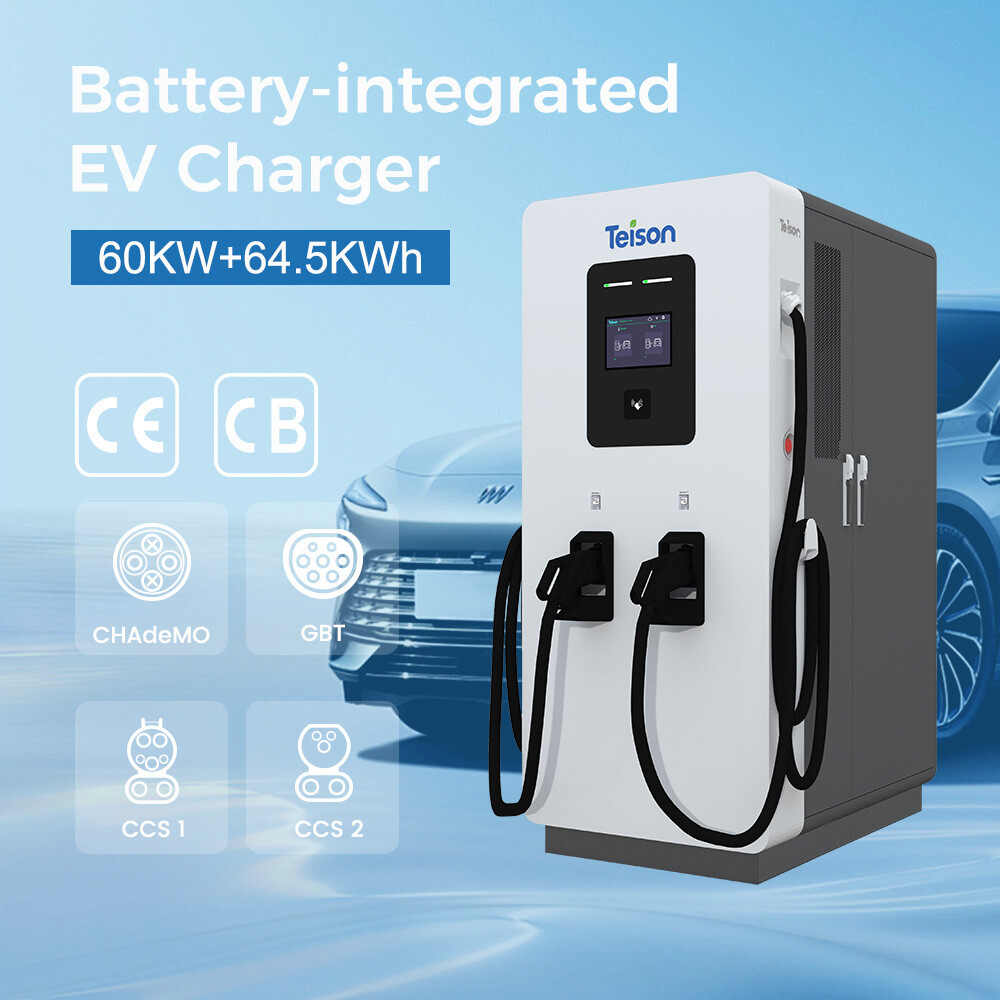

Model		DC ESS
Electrical Properties
AC Input	Input Rating	260V~485VAC
	AC Input Connection	3P+N+PE
	Rate Input Current	3Ф92A
	Frequency	50/60Hz
	Power Factor	≥0.98
	Efficiency	≥95%
DC Output	Output Vol tage Range	300V~1000V
	Max.Output Current	100A
	Max.Output Power	60kW
	Voltage Accuracy	±0.5%
	Current Accuracy	±1%
Energy-Storage System	Battery Capacity	64.5Kwh
	Usable Energy(SAT)	61.3Kwh(95%DOD)
	Battery Nominal Voltage	614.4V
	Battery Material	LiFePO4
	Max Recharge Power	30kW
	Max Discharge Power	60kW
	Battery Recharge Current	≤0.5C(50A)
	Battery Discharge Current	≤1C(100A)
	Battery Cycle Life(25°C）	≥6000 (80% DOD)
Product Specification
Dimension		0.91.22.05m(WDH)
Material		Industrial Grade Alloy
Color		White weather-resistant coating
User Interface & Control
Display		10.1" touch screen
Screen Material		LCD
Meter		DC meter(MID PTB optional)
Push Buttons		Operation buttons / Emergency buttons / Fire button
User Authentication		RFID,OCPP,QR code,Password Application
Support language		English (Other languages available upon request)
Communication
Communication Protocol		OCPP 1.6J
External		Ethernet,WIFI
Internal		CAN,RS485,RS232
Environmental
Operating Temperature		‘-25℃-50℃（over 45℃ derating）
Humidity		<95% relative humidity, non-condensing
EMC Emission		Type B
Altitude		≤2000m(6000 feet)
Mechanical
Ingress protection		IP55
Enclosure Protection		IK10
Fire System		Composite Detector + Aerosol Extinguishing agent
Cooling System		Air Cooling/Air Conditioning
Installation Method		Floor mounted
Safety
Input Protection		Under voltage, Over voltage, Over current, Over temperature, Leakage,
Output Protection		Short circuit, Over temperature, Residual current, Over current, Leakage,
Emergency Protection		Surge protection, Ground fault, High precision output insulation monitoring
Regulation
Certiﬁcate		CE CB MSDS UN38.3
Standard		IEC61851-1, IEC61851-23, IEC61851-21-2, IEC61851-24, IEC61000-6-2, IEC61000-6-4, IEC 62619, IEC61000-6-1/3,
Optional Conﬁg
Network Gateway		4G
Payment Method		POS Machine

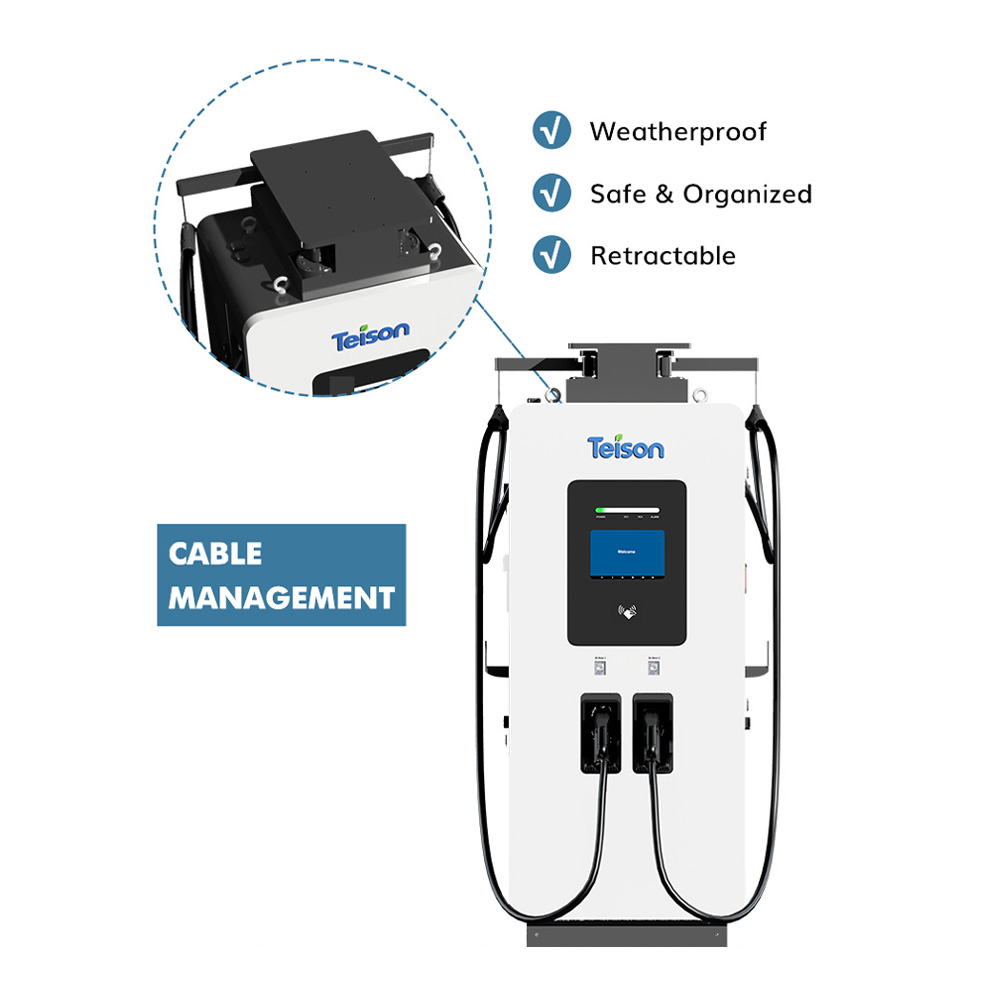

Cable Management		Optional
Advertising screen		Optional
Charging Port		Optional(Default CCS1 CCS2)
Solar Port		Reserved
