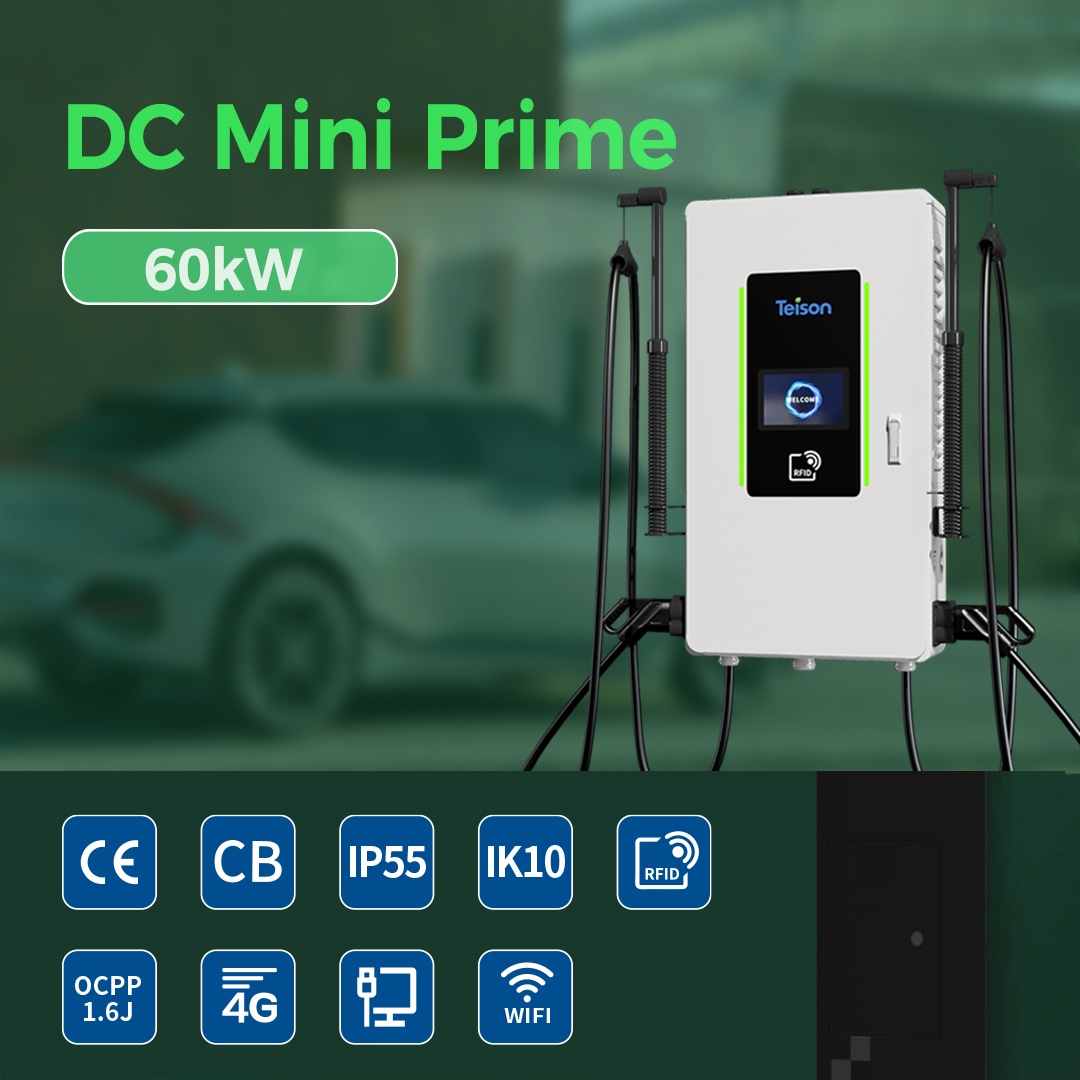

Fast, Efficient and Safe 60kW DC Wallbox Charger

This 60kW wall-mounted DC EV charger is equipped with a 10-inch touch screen and features an IP55-rated enclosure with IK10 protection, ensuring reliable performance in both indoor and outdoor environments. It supports CCS1/2 GBT and NACS charging connectors and offers smart connectivity via Ethernet, 4G, and WiFi, along with RFID Card control for flexible user authorization. Compliant with OCPP 1.6J(OCPP2.0.1 upgrade optional), the charger enables seamless integration with charging management platforms, making it an ideal solution for commercial and public EV charging applications.

Request A Quote

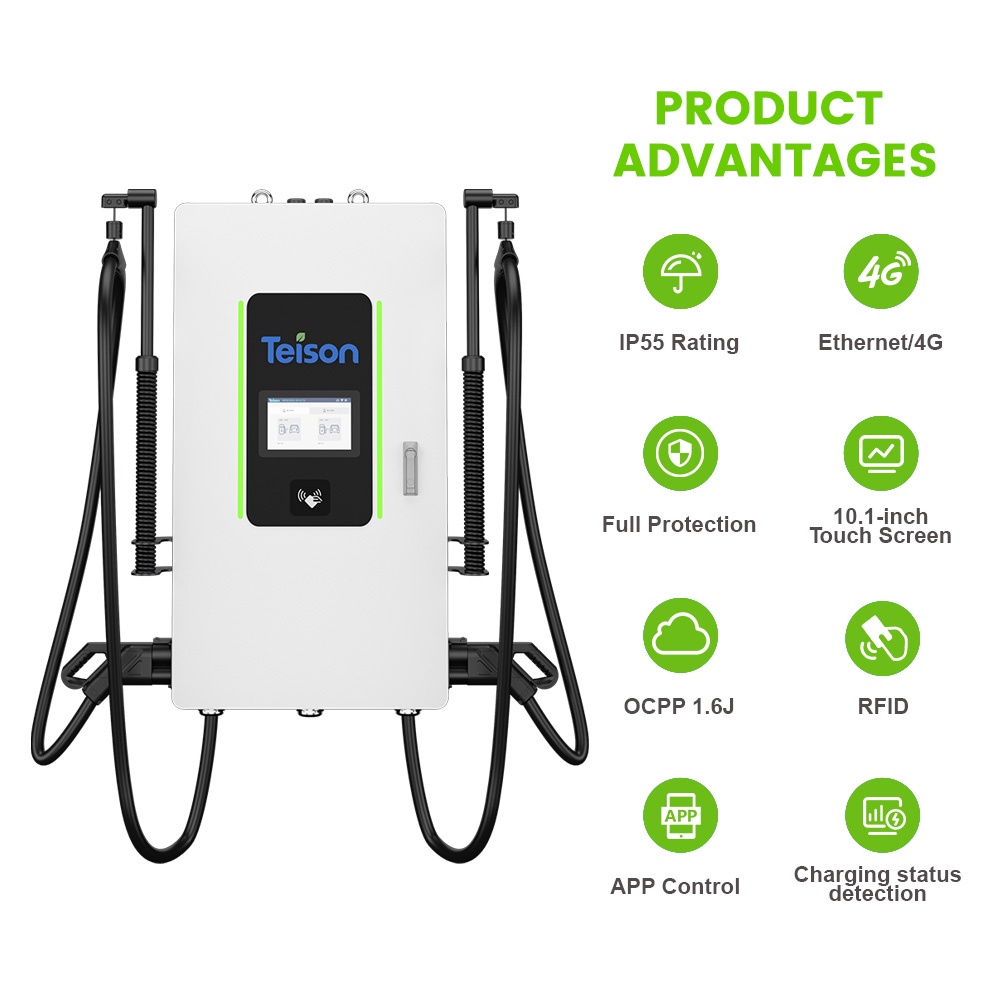

FEATURES/ADVANTAGES

  • 详情海报

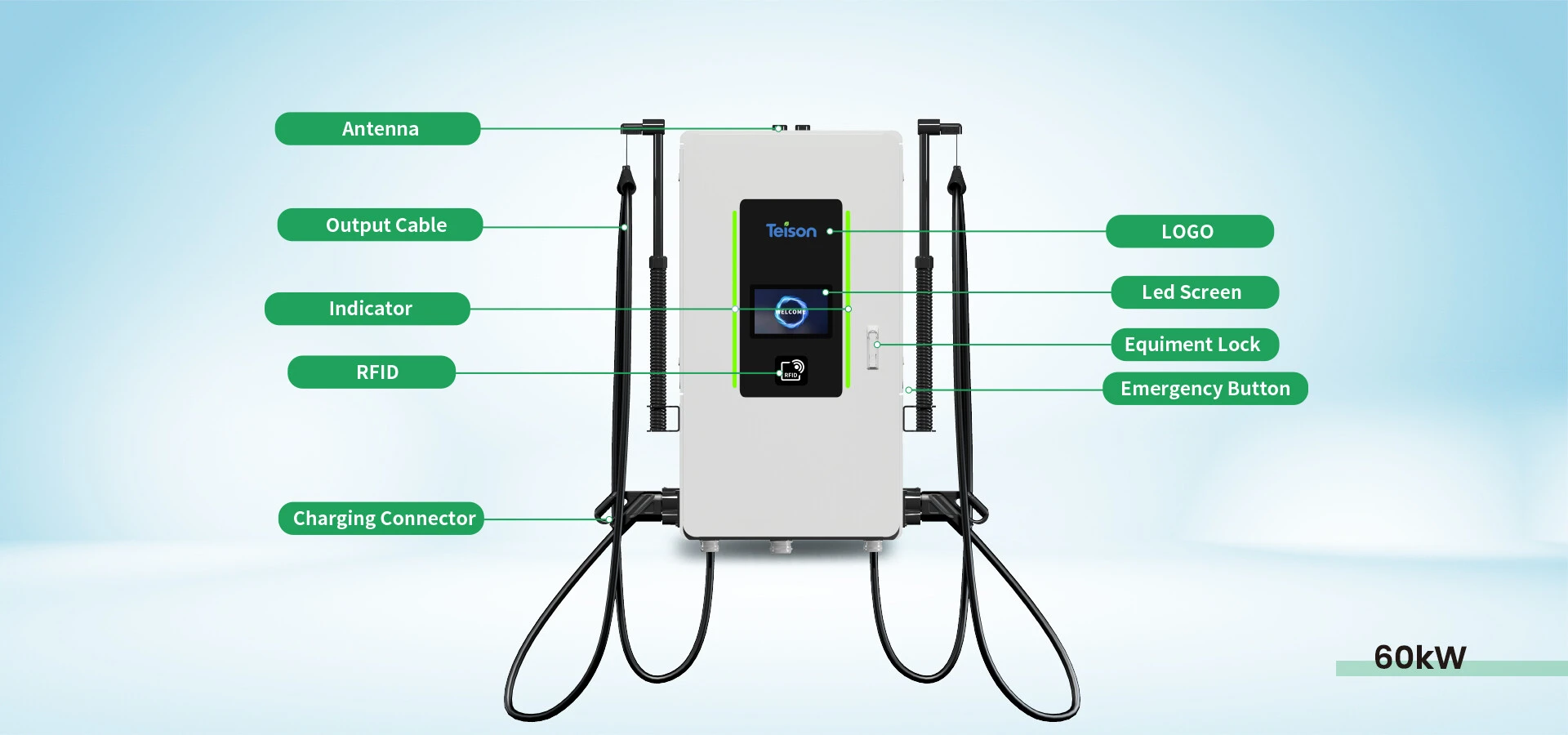

FAST, EFFICIENT AND SAFE EV CHARGING STATION

Teison DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.



The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.

Parameter

Technical Specifications
Product Model DC Mini Prime
Electrical Properties
AC Input Input Voltage Range 3-phase 400 VAC±10%, 50/60 Hz，3P+N+PE
Rated Input Current 3Φ96A
Max Input Power 63kW
Earthing System TN-C TN-S TN-C-S TT
Power Factor ≥0.99
Peak Efficiency ≥96%
Standby Power Consumption ≤100W
Harmonic Distortion (THDi) ≤5%
DC
Output		 Output Voltage Range 150~1000 VDC
Max Output Current (system) 200A
Max Output Current
(connector)		 150A
200A (Optional)
Max Output Power 60kW
Number Of Outputs 1 (Any one of CCS2,CCS1,GBT,CHAdeMO,NACS)
2 (Any two combinations of CCS2,CCS1,GBT,CHAdeMO,NACS)

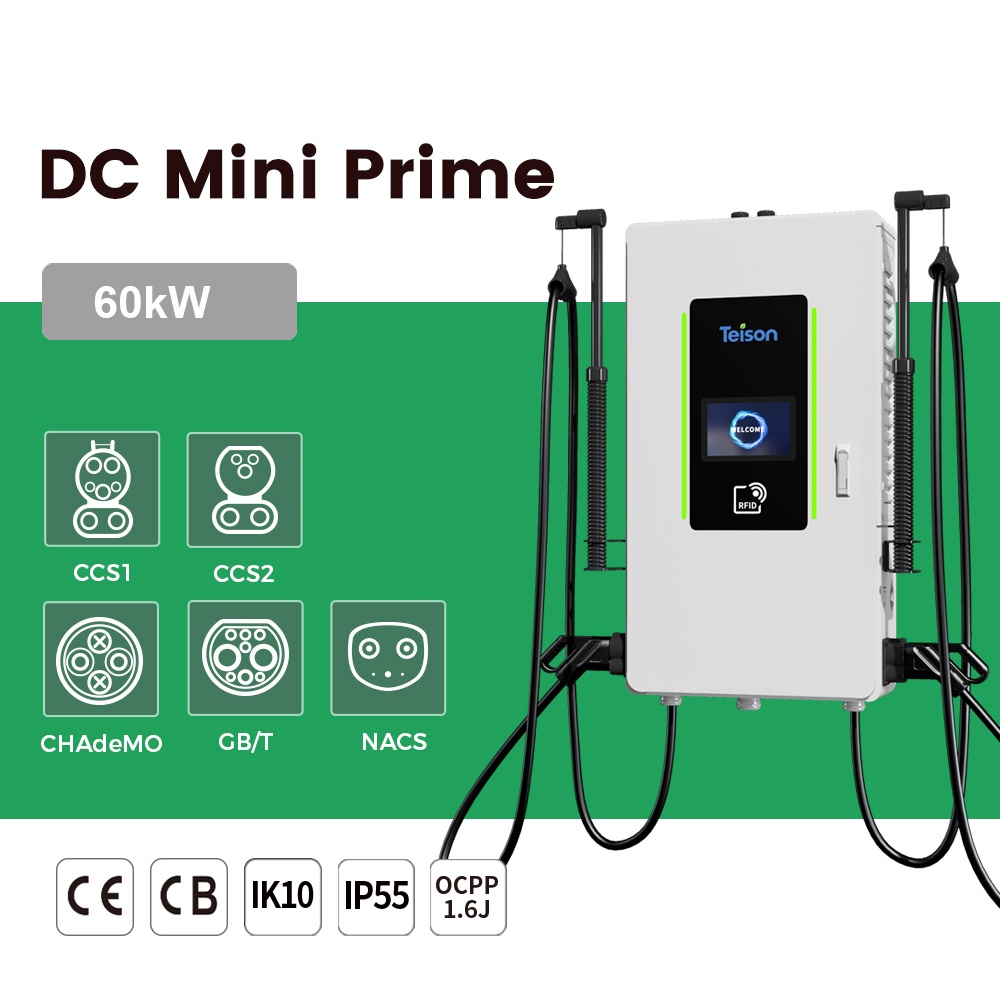

Connector Type CCS2, CCS1, GBT, CHAdeMO, NACS
Voltage Accuracy ≤±0.5%
Current Accuracy ≤±1%
User Interface
Display 10.1" Touch screen
Meter CE Meter
Push Buttons Emergency button
User Authentication RFID, QR code, Application
Support Language English (Other languages available upon request)
Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1.6J, Support upgrading to OCPP 2.0.1
Environmental
Operating Temperature Range 30℃-55℃(Over 55℃derating)
Storage Temperature Range -40℃-70℃
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000m
Noise <65dB @ 3m 25℃Full power
Mechanical

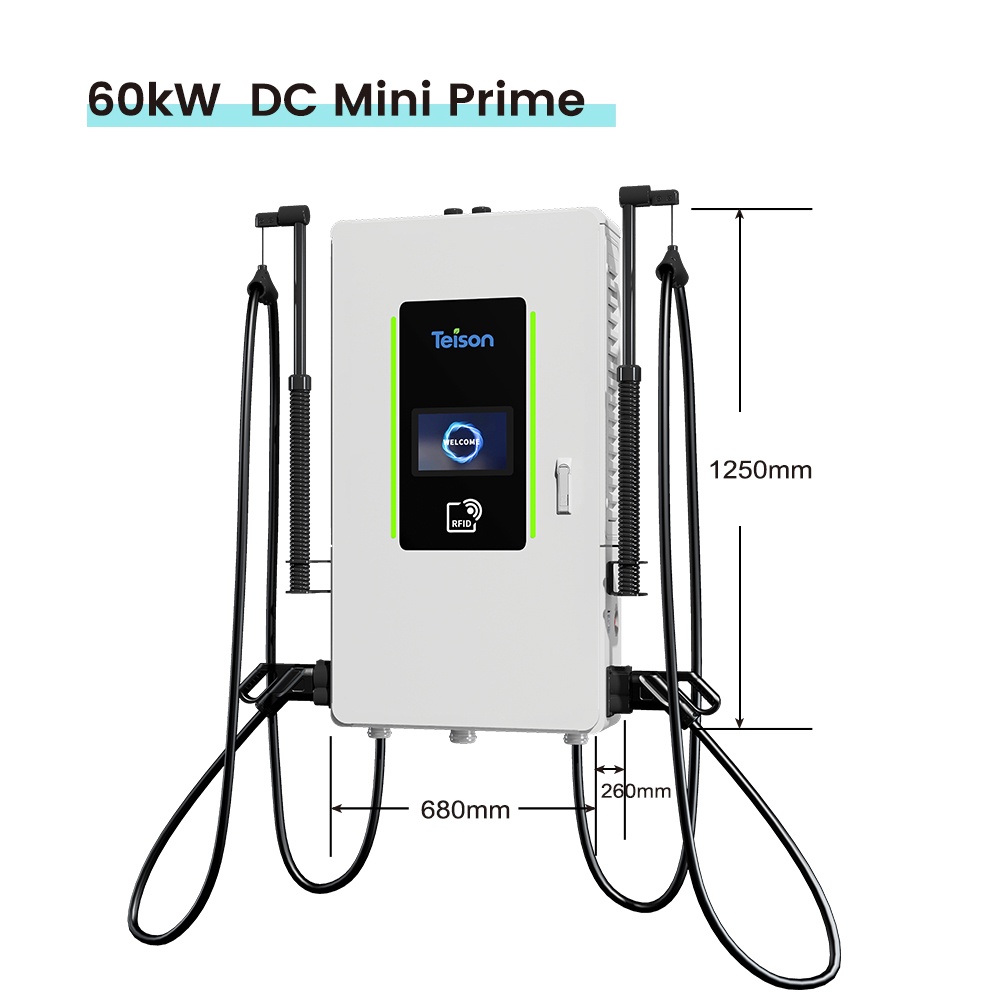

Dimensions (W*D*H) 680mm*275mm*1250mm (Excluding cable management and column)
Weight ≤180kg
IP & IK Rating IP55&IK10 (HMI IK8)
Charging Cable Length 5m
Cooling Air cooling
Installation Method Wall-mount or Column
Cable Management System Standard configuration
Protection
Protection Over voltage protection, Under voltage protection, Overload protection, Leakage current
protection, Over temperature protection, Grounding protection, Surge protection, Short
circuit protection, Fault self-check, Insulation detection, Dumping protection, Smoke alarm.
Certification And Standards
Certificate CE CB
Charging Standards IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3
Communication Protocol Standards ISO15118-1; ISO15118-2; ISO 15118-3; DIN 70121
Optional Config
Installation method Column Column
Meter MID Meter
User Authentication POS Machine
Network Connection 4G
Charging Cable Length 6m, 7m, Other lengths upon request
Customized Branding Branding options, such as custom colors and stickers
Contact Teison for availability, pricing, and minimum order quantity
