| Technical Specifications |
| Product Model |
DC Pro Max |
| Electrical Properties |
AC
Input |
Input Voltage Range |
3-phase 400 VAC±10%, 50/60 Hz, 3P+N+PE |
| Rated Input Current |
3Φ480A |
3Φ576A |
3Φ640A |
3Φ768A |
| Max Input Power |
316kW |
379kW |
421kW |
505kW |
| Earthing System |
TN-C TN-S TN-C-S TT |
| Power Factor |
≥0.99 |
| Peak Efficiency |
≥96% |
| Standby Power Consumption |
≤100W |
| Harmonic Distortion (THDi) |
≤5% |
DC
Output |
Output Voltage Range |
150~1000 VDC |
| Max Output Current (system) |
600A @Liquid cooling
400A @Air cooling |
Max Output Current
(connector） |
300A, 350A, 400A
optional @Air cooling
500A,600A optional
@Liquid cooling |
| Max Output Power |
300kW |
360kW |
400kW |
480kW |
| Number Of Outputs |
2 (Any two combinations of CCS2, CCS1, GBT, CHAdeMO, NACS) |

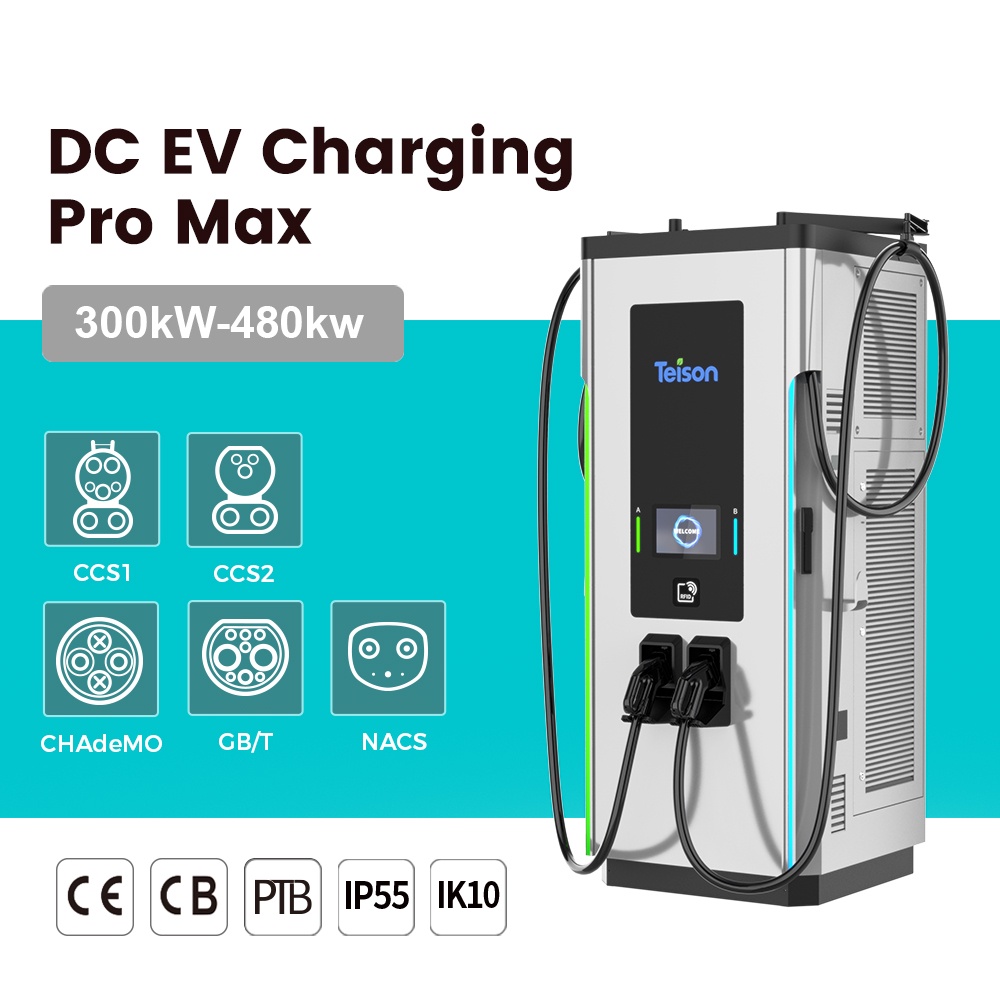

| Connector Type |
CCS2, CCS1, GBT, CHAdeMO, NACS |
| Voltage Accuracy |
≤±0.5% |
| Current Accuracy |
≤±1% |
| User Interface |
| Display |
10.1" Touch screen |
| Meter |
CE Meter |
| Push Buttons |
Emergency button |
| User Authentication |
RFID, QR code, Application |
| Support Language |
English (Other languages available upon request) |
| Communication |
| Network Connection |
Ethernet, Wi-Fi |
| Communication Protocol |
OCPP 1.6J, Support upgrading to OCPP 2.0.1 |
| Environmental |
| Operating Temperature Range |
-30℃-55℃(Over 55℃derating) |
| Storage Temperature Range |
-40℃-70℃ |
| Humidity |
<95% relative humidity, Non-condensing |
| Altitude |
≤2000m |
| Noise |
<70dB @ 3m 25℃Full power |
| Mechanical |

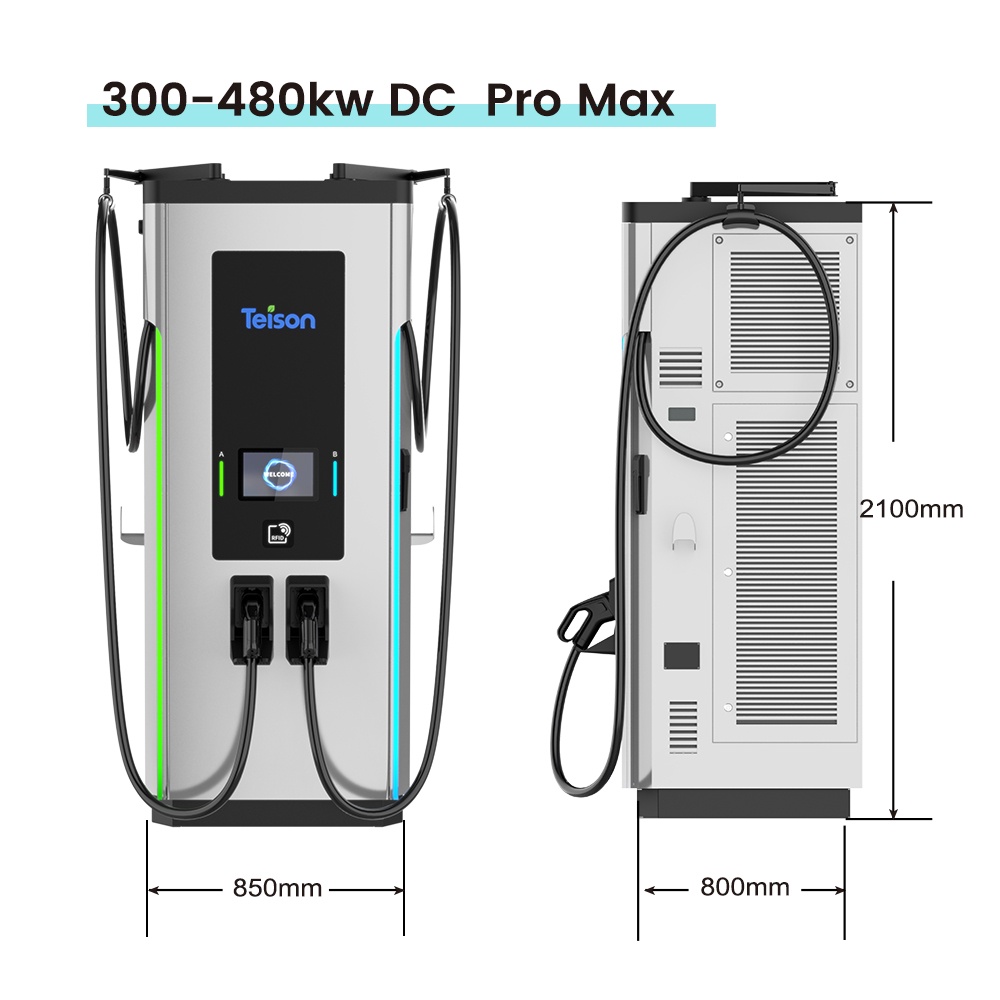

| Dimensions (W*D*H) |
850mm*800mm*2050mm (Excluding cable management)
850mm*800mm*2120mm (with cable management) |
| Weight |
≤700kg |
| IP & IK Rating |
IP55 & IK10 (HMI IK8) |
| Charging Cable Length |
5m |
| Cooling |
Air cooling / Liquid cooling |
| Installation Method |
Floor mounted |
| Protection |
| Protection |
Over voltage protection, Under voltage protection,Overload protection, Leakage current
protection, Over temperature protection,Grounding protection, Surge protection, Short
circuit protection,Fault self-check, Insulation detection，Soaking
protection, Smoke alarm. |
| Certification And Standards |
| Certificate |
CE CB PTB |
| Charging Standards |
IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3 |
| Communication Protocol Standards |
ISO15118-1; ISO15118-2; ISO 15118-3;
DIN 70121 |
| Optional Config |
| Meter |
MID Meter or PTB Meter |
| User Authentication |
POS Machine |
| Network Connection |
4G |
| Charging Cable Length |
6m 7m Other Lengths upon request |
| Cable Management System |
Optional |
| Output Interfaces |
Customizable three output interfaces
(Any three combinations of CCS2, CCS1, GBT, CHAdeMO, NACS, Type 2) |
| Customized Branding |
Branding options, such as custom colors and stickers
Contact Teison for availability, pricing, and minimum order quantity |
