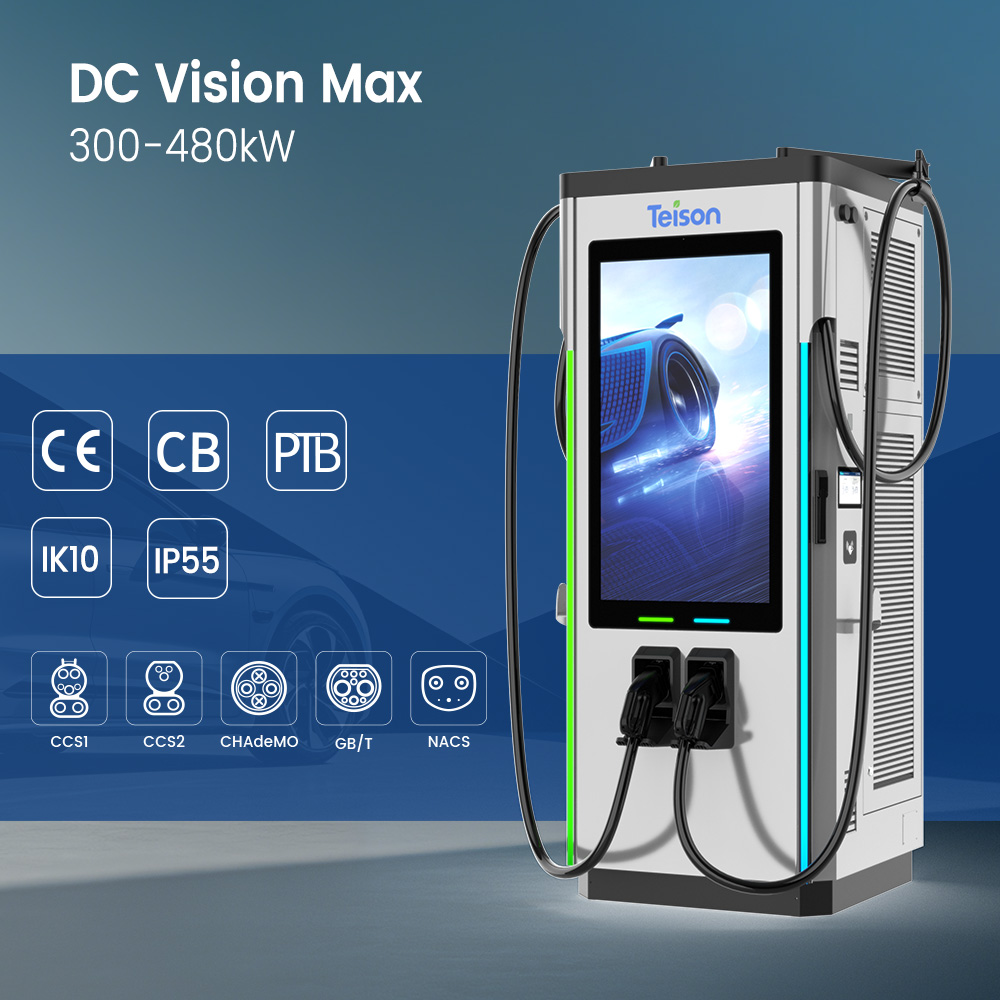

主图1

›

‹

  • 主图1

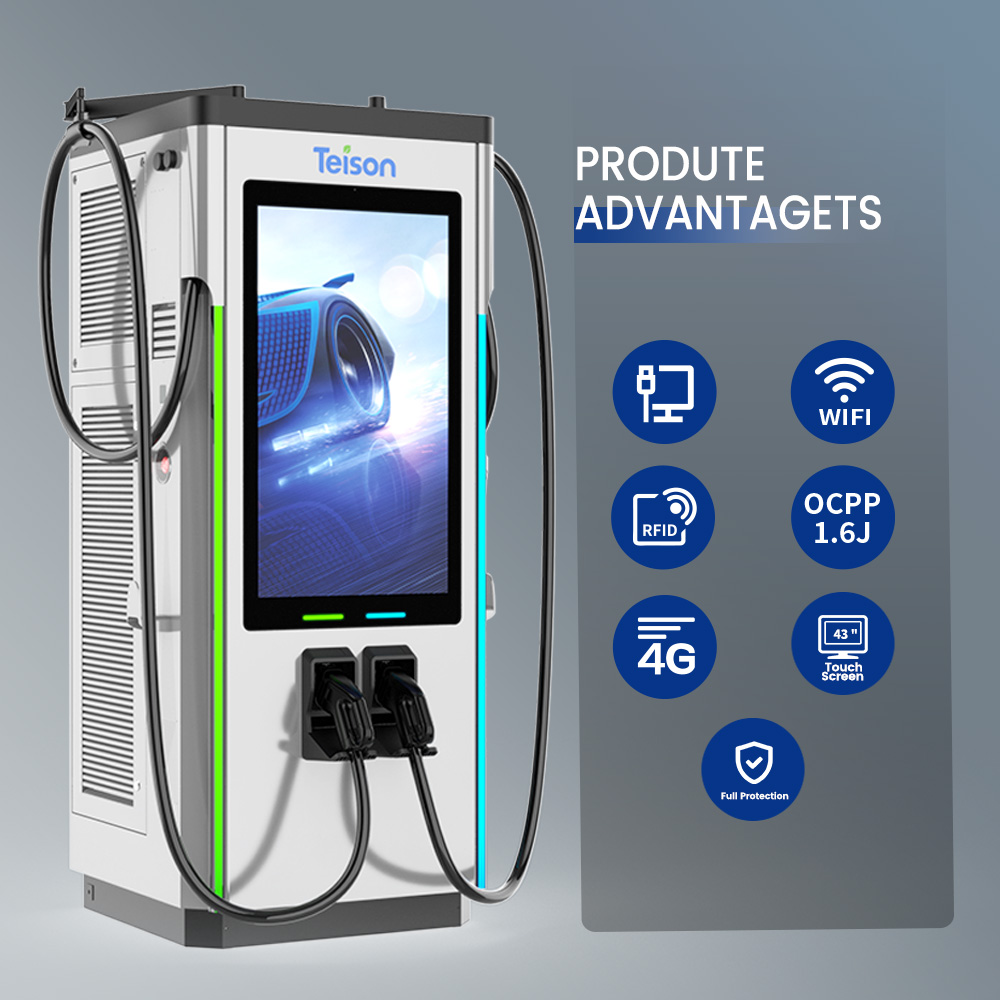

  • 主图2

›

480kW DC Ultra-Fast Charging Station

ALL-IN-ONE, Dual 43 Inch Advertisement Screen

Designed for high-demand environments such as HCV fleets and highways, Teison 300-480kW integrated charging solution delivers ultra-fast charging for two electric vehicles simultaneously, ensuring optimal efficiency in today’s rapidly growing EV market. Ideal for high-traffic locations, this solution combines speed, sustainability, and smart monetization—powering the future of EV charging.

Request A Quote

FEATURES/ADVANTAGES

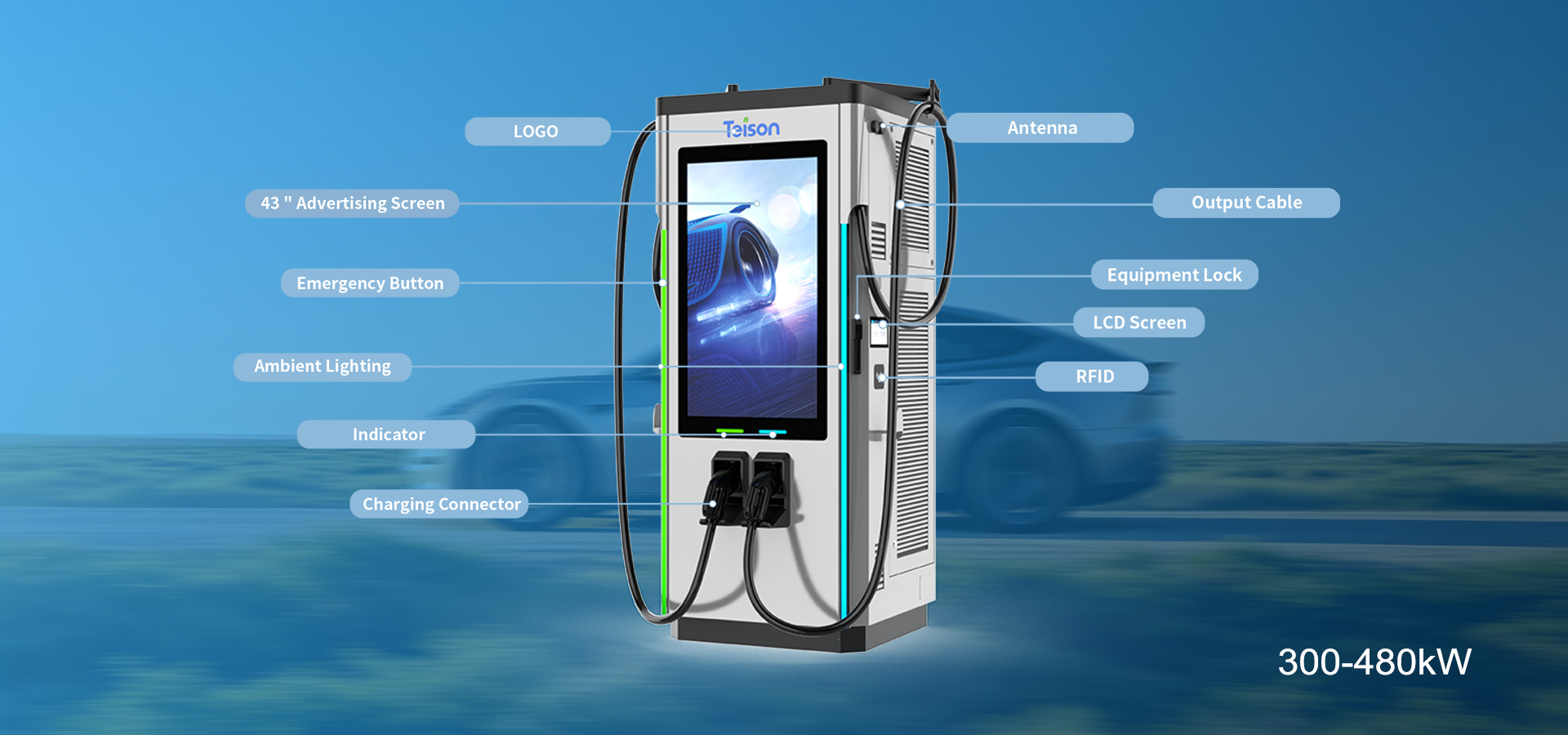

  • 详情图

Features



• Multiple standard charging port

  CCS2, CCS1, GB/T, CHAdeMO and NACS can be combined and customized.

• Diverse power range

  Multiple power options are available, ranging from 300 kW to 480 kW with customizability.

• High current output

  Liquid cooling meets a maximum output of 600A, while air cooling meets a maximum output of 400A.

• Wide voltage range

  Output voltage 150~1000 VDC meeting the needs of the vast majority of electric vehicles on the market.

• Low noise

  Noise level as low as 70dB or below.

• Load balancing

  More effective connection to the load system.

• Efficient output

  Peak efficiency meets over 96%.

Parameter

Technical Specifications
Product Model DC Vision Max
Electrical Properties
AC
Input		 Input Voltage Range 3-phase 400 VAC±10%, 50/60 Hz，3P+N+PE
Rated Input Current 3Φ480A 3Φ576A 3Φ640A 3Φ768A
Max Input Power 316kW 376kW 421kW 505kW
Earthing System TN-C TN-S TN-C-S TT
Power Factor ≥0.99
Peak Efficiency ≥96%
Standby Power Consumption ≤150W
Harmonic Distortion (THDi) ≤5%
DC
Output		 Output Voltage Range 150~1000 VDC
Max Output Current (system) 600A @liquid cooling
400A @air cooling
Max Output Current
(connector)		 300A, 350A, 400A optional @Air cooling
500A, 600A optional @Liquid cooling
Max Output Power 300kW 360kW 400kW 480kW
Number Of Outputs 2（Any two combinations of CCS2, CCS1, GBT, CHAdeMO, NACS）
Connector Type CCS2, CCS1, GBT, CHAdeMO, NACS
Voltage Accuracy ≤±0.5%
Current Accuracy ≤±1%
User Interface
Display 10.1" Touch screen, 43" Advertising screen
Meter CE Meter
Push Buttons Emergency button
User Authentication RFID, QR code, Application
Support Language English (Other languages available upon request)
Communication
Network Connection Ethernet, Wi-Fi
Communication Protocol OCPP 1. 6J, Support upgrading to OCPP 2.0.1
Environmental
Operating Temperature Range -30℃-55℃(Over 55℃derating)
Storage Temperature Range -40℃-70℃
Humidity <95% relative humidity, Non-condensing
Altitude ≤2000m
Noise <70dB @ 3m 25℃Full power
Mechanical
Dimensions (W*D*H) 850mm*800mm*2050mm (Excluding cable management)
850mm*800mm*2120mm (with cable management)
Weight ≤700kg
IP & IK Rating IP55 & IK10 (HMI IK8)
Charging Cable Length 5m
Cooling Air cooling / Liquid cooling
Installation Method Floor mounted
Protection
Protection Over voltage protection, Under voltage protection,Overload protection, Leakage current
      protection, Over temperature protection,Grounding protection, Surge protection, Short
                            circuit protection,Fault self-check, Insulation detection，Soaking
                                                                          protection, Smoke alarm.
Certification And Standards
Certificate CE CB PTB
Charging Standards IEC61851-1, IEC61851-21-2, IEC61851-23, IEC61851-24, IEC 62196-1, IEC 62196-3
Communication Protocol Standards ISO15118-1; ISO15118-2; ISO 15118-3;
DIN 70121
Optional Config
Meter MID Meter or PTB Meter
User Authentication POS Machine
Network Connection 4G
Charging Cable Length 6m 7m Other Lengths upon request
Cable Management System Optional
Output Interfaces Customizable three output interfaces
(Any three combinations of CCS2, CCS1, GBT, CHAdeMO, NACS, Type 2)
Customized Branding Branding options, such as custom colors and stickers
Contact Teison for availability, pricing, and minimum order quantity
